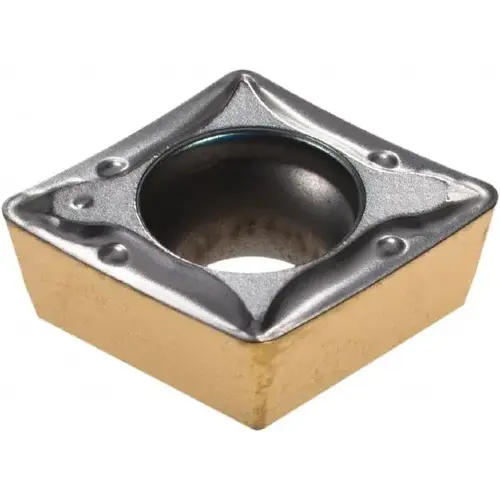

Iscar 5550289-XCP10 Turning Insert: CPMT 3-2-PF, Solid Carbide - pack of 10

Item #: 5550289-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$266.00

/package
SAVE UP TO 26.60

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Material Grade

Submicron

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3740

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.1378

Rake

Positive

Inscribed Circle (Decimal Inch)

0.3748

Insert Length (mm)

9.50

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

P

Insert Shape Code

C

Chip Breaker

PF

Insert Style

CPMT

Insert Size Code

3-2

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

11

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

3.50

Manufacturer Grade

IC807

Length Range (Decimal Inch)

0.3000 - 0.4000

Iso Code

ISO 13399

Product Overview
Turning Insert: CPMT 3-2-PF, Solid Carbide TiAlN & TiN Coated, 9.5 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Isoturn
