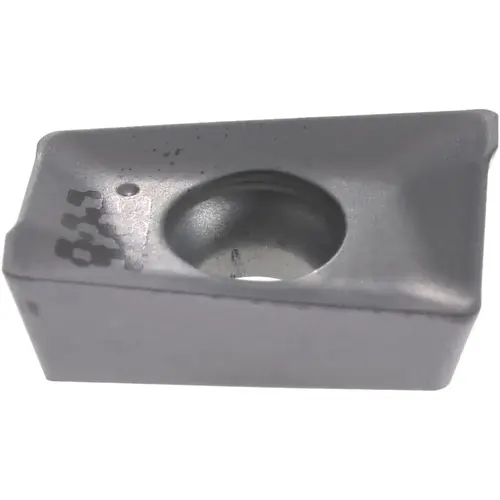

Milling Insert: APKT 1003PDR-HM, IC928, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5691218-XCP10 Milling Insert: APKT 1003PDR-HM, IC928, Solid Carbide - pack of 10

Item #: 5691218-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$339.50

/package
SAVE UP TO 33.95

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 34 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

ANSI Code

APKT 1003PDR-HM IC928

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

HELIMILL

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0197

Length (Decimal Inch - 4 Decimals)

0.4310

Manufacturers Catalog Number

APKT 1003PDR-HM IC928

Material Grade

C1

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1400

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2640

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3860

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2640

Insert Shape

Parallelogram

Chip Breaker

HM

Insert Style

APKT

Insert Size Code

1003

Relief Angle

11.00

Included Angle Degree

85

Cutting Edge Effective Length (Decimal Inch)

0.4310

Maximum Depth of Cut (mm)

8.00

Manufacturer Grade

IC928

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Single

Cutter Series Compatibility

HM90-10

Length Range (Decimal Inch)

0.4000 to 0.4500

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Corner Radius (mm)

0.50

Iso Code

APKT 1003PDR-HM

Product Overview
Milling Insert: APKT 1003PDR-HM, IC928, Solid Carbide Coated, 0.1398" Thick, 0.2638" Wide
