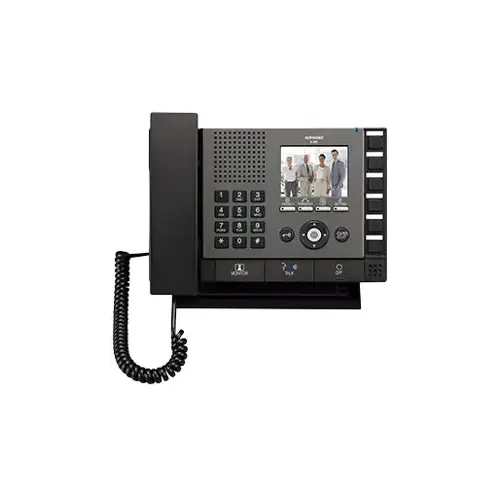

Aiphone IX-MV IX Series Wall or Desk Mount 1-Channel IP Color Video Master Station Intercom with 802.3af PoE Compliant, Black
Item #: IX-MV by Aiphone Co., Ltd
UPC #: 840067651186
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Power Source: Power Over Ethernet (802.3af)
- Network Interface: 10 BASE‑T / 100 BASE‑TX Ethernet (RJ-45)
- Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP,
- RTP, RTCP, IGMP, MLD, SMTP, DHCP, NTP, DNS
- Bandwidth Usage: G.711: 64Kbps x 2 per call,; 64Kbps per station in paging group; H.264: 24Kbps ~ 2,048Kbps
- Communication: Hands‑free (VOX), push‑to‑talk (simplex), or handset (full-duplex)
- Video Display: 3‑1/2" color LCD
- Camera: Type: 1/4" color CMOS; View Area: 2'2" vert. x 3'1" horiz. at 20"
- Video Stream: ONVIF Profile S
- Door Release: Programmable Form C dry contact, 24V AC/ DC,; 500mA – use EL‑12S (use RY‑24L for larger contact rating, which requires 24V DC power supply) or use RY-IP44 with 4 multipurpose relays
- Wire Type: CAT‑5e or CAT‑6
- Distance: Door Station or RA Station to Network Node: 330', Master Station to Network Node: 330'
Warranty
1 Year Limited Warranty
Pack Size
1
Certifications and Listings
ISO Certified
Included
No Additional Items Included
Indoor/Outdoor
Indoor
Product Depth (in.)
10
Product Height (in.)
3.5
Product Width (in.)
9
Standard Color Family
Black
UNSPSC
46171610
Product Overview
The IX Series 2 offers the power of an Enterprise platform with the simplicity of a single system. It's a platform for enterprise security and communications that grows with you. It expands your network across multiple security layers for one, very powerful solution. No annual AIPHONE licensing fees. No proprietary servers. No need to train your staff on multiple systems. Combine that with built-in backwards/forwards compatibility and our freakish reliability and you can feel confident in your choice for years to come. Utilizing SIP, register any IX Series 2 station to Cisco Unified Call Manager and place or forward calls to an external phone number. Master stations can now serve a dual role as a single command point, controlling security layers such as access control and emergency communications. With picture-in-picture, master stations can toggle between ONVIF Profile S IP cameras and the new 1.3 megapixel cameras on IX Series 2 video stations. Line supervision ensures all stations are online while device check verifies every button, station speaker and microphone are operating properly. The IX Series is a perfect solution for commercial sites, industrial facilities, schools, campuses, parking garages, retail, emergency call and correctional applications.
- Wall or desk mount audio and video intercom station
- For Networked Based Intercom systems
- IX-2 system scope: multiple security layers, scalable enterprise system
- 24 VDC voltage
