Jackson 21101U18 Adjustable Spring Power 105 degree Hold Open Overhead Concealed Closer With 'U' Side-Load Hardware Package
Item #: 21101U18 by Jackson
In Stock $276.57 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 'U' Center-Hung, Side-Load Hardware Package for Doors with 1/2" Deep Top Rails
- Spring Power Adjustable Closer Suitable for Doors from 30" to 48" (762 to 1.22 m) Wide
- Ten Year Limited Warranty U.L. Listed
Length
11-5/8" (295 mm)
Shipping Weight
10 lb (4.54kg)
Width
3-11/16" (94 mm)
Brand
Jackson
Type
Center Hung
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Double Acting
Spring Size
Adjustable
Hold Open
Yes
Maximum Door Weight
250
UL Listed
Yes
Includes
20101M18, 201380, 20400B, 20944
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Top Rail Depth (Inches)
1/2
Similar
21101GE18
Americans with Disabilities Act (ADA) Compliant
Yes
Bottom Door Rail Depth (Inches)
1-1/2
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Bottom Pivot Type
Threshold Mount Pivot
Spindle Length (Inches)
1/2
Degree Hold Open
105°
Spindle
1/2
Bottom Door Rail Depth
1-1/2
Top Rail Depth
1/2

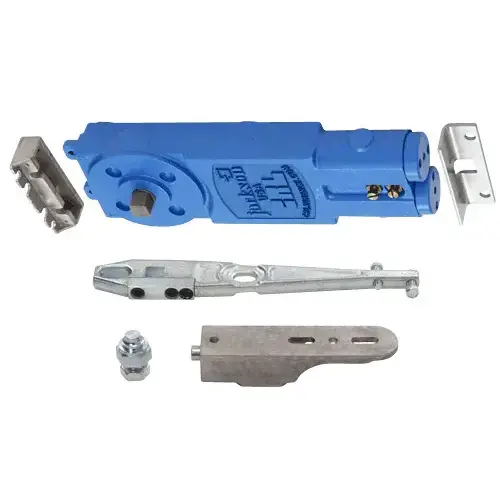

The CRL Jackson® 21101 Series Overhead Concealed Closer with 'U' Side-Load Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 48" (762 to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201380 Mounting Clips, 20400B Side-Load Arm, Type "GE" 20944 Bottom Pivot Set for Threshold mounting, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º Hold Open with fixed adjustable spring power size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
.
