Jackson 21104S12 Heavy-Duty Spring 7/8" Extended Spindle 90 degree Hold Open Overhead Concealed Closer With "S" Side-Load Hardware Package
Item #: 21104S12 by Jackson
In Stock $247.92 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- "S" Center-Hung, Side-Load Hardware Package For Doors with 1/2" Deep Top Rails
- S Center-Hung, Side-Load Hardware Package For Doors with 1/2" Deep Top Rails
- Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
- Five Year Limited Warranty U.L. Listed
Length
11-5/8" (295 mm)
Width
3-11/16" (94 mm)
Brand
Jackson
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Type
Center Hung
Handing
Double Acting
Spring Size
Heavy Duty
Hold Open
90°
Maximum Door Weight
250
UL Listed
Yes
Includes
20104M12, 20219, 20400B, 20902
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Top Rail Depth (Inches)
1/2
Similar
21101GE20, 21101U20
Bottom Door Rail Depth (Inches)
1-1/2
Closer Package
Yes
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Bottom Pivot Type
Floor Mount Pivot
Spindle Length (Inches)
1/2
Spindle
1/2
Bottom Door Rail Depth
1-1/2
Top Rail Depth
1/2

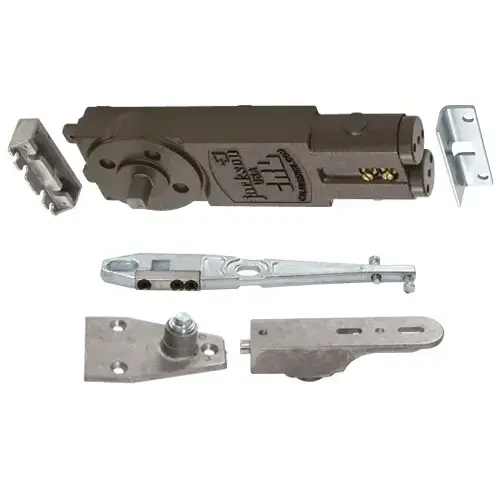

The CRL Jackson® 21101 Series Overhead Concealed Closer with "S" Side-Load Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 20219 Mounting Clips, 20400B Side-Load Arm, Type "G" 20902 Bottom Pivot Set for floor mounting, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 90° Hold Open with fixed heavy duty spring size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
.
