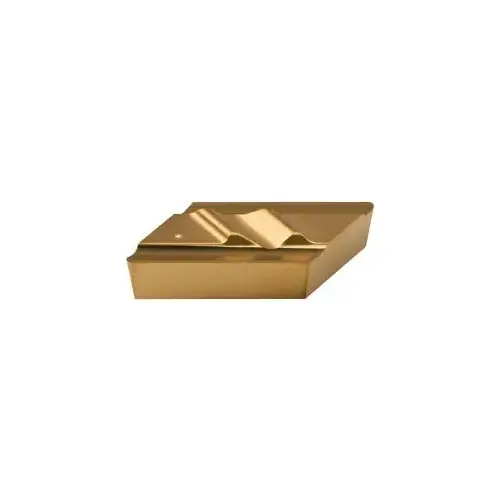

Kennametal 1163214 Profiling Insert: NPR51 KC730, Solid Carbide TiN

Item #: 1163214 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$36.35

/each
SAVE UP TO 3.63

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 477 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Parallelogram

Applications

Profiling

Number of Cutting Edges

4

Standards

NPR51

Chipbreaker

Common

Included Angle

55

Thickness (mm)

3.18

Insert Material

Carbide

Series

Top Not

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0156

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1250

Thickness (Inch)

1/8

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2490

Width (Inch)

1/4

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3769

Maximum Depth of Cut (Decimal Inch)

0.1256

Rake

Negative

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2490

Insert Length (mm)

9.53

Rake Angle

10

Insert Style

NPR

Insert Size Code

51

Hole Diameter (Decimal Inch)

0.0000

Relief Angle

0

Manufacturer Grade

KC730

Side Length (mm)

11.60

MSC/Manufacturer Number

NPR51

Side Length (Decimal Inch)

0.3769

Corner Radius (mm)

0.40

Iso Code

KCGX110304R15

Insert Height (Decimal Inch)

0.1250

Product Overview
Profiling Insert: NPR51 KC730, Solid Carbide 1/8" Thick, 1/64" Corner Radius, Series Top Notch
