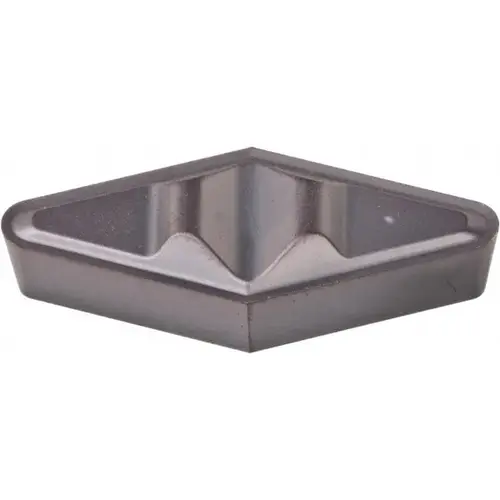

Kennametal 1841355-XCP5 Profiling Insert: VPGR334 KC5010, Carbide - pack of 5
Item #: 1841355-XCP5 by Kennametal
See reviewsSee reviews
In Stock
$252.88
/packageSAVE UP TO 25.29
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 54 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Shape
Parallelogram
Applications
Profiling
Number of Cutting Edges
2
Standards
VPGR334
Chipbreaker
Common
Included Angle
35
Thickness (mm)
4.76
Insert Material
Carbide
Series
Top Not
Coating Process
PVD
Coating/Finish
AlTiN
Corner Radius (Decimal Inch)
0.0625
Material Grade
P10
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1875
Thickness (Inch)
3/16
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750
Width (Inch)
3/8
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6538
Maximum Depth of Cut (Decimal Inch)
0.2179
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3750
Rake Angle
10
Insert Style
VPGR
Insert Size Code
334
Hole Diameter (Decimal Inch)
0.0000
Relief Angle
8
Inscribed Circle (Inch)
3/8
Manufacturer Grade
KC5010
Inscribed Circle (mm)
9.53
Side Length (mm)
16.61
MSC/Manufacturer Number
VPGR334
Side Length (Decimal Inch)
0.6538
Corner Radius (mm)
1.59
Iso Code
VCGR160416
Insert Height (Decimal Inch)
0.1875
Product Overview
Profiling Insert: VPGR334 KC5010, Carbide 3/8" Inscribed Circle, 3/16" Thick, 1.59 mm Corner Radius, Series Top Notch
