Profiling Insert: NPGR51L KC5010, Carbide AlTiN

Roll over image to zoom in

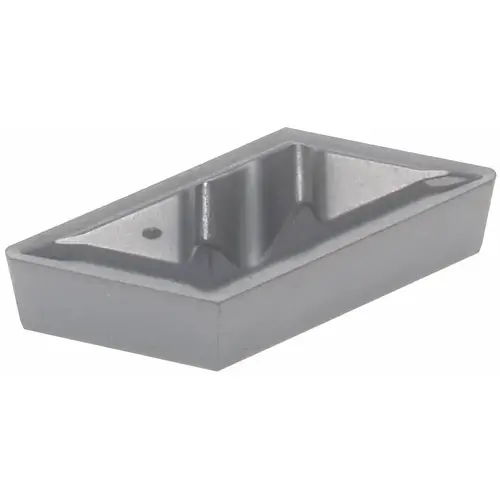

Kennametal 1849275 Profiling Insert: NPGR51L KC5010, Carbide AlTiN

Item #: 1849275 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$36.54

/each
SAVE UP TO 3.65

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 120 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Insert Height (Decimal Inch)

0.1250

Iso Code

KCGR110304L08

Corner Radius (mm)

0.40

Side Length (Decimal Inch)

0.3750

MSC/Manufacturer Number

NPGR51L

Side Length (mm)

11.60

Manufacturer Grade

KC5010

Insert Length (Inch)

3/8

Inscribed Circle (Inch)

1/4

Relief Angle

8

Hole Diameter (Decimal Inch)

0.0000

Insert Size Code

51L

Insert Style

NPGR

Rake Angle

10

Insert Length (mm)

9.53

Inscribed Circle (Decimal Inch)

0.2500

Insert Hand

Left Hand

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.1250

Insert Length (Decimal Inch)

0.3750

Insert Holding Method

Clamp

Coating Classification

PVD

Width (Inch)

1/4

Width (Decimal Inch - 4 Decimals)

0.2500

Vendor Drop Ship

N

UNSPSC Code

23242105

Thickness (Inch)

1/8

Thickness (Decimal Inch - 4 Decimals)

0.1250

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P10

Corner Radius (Decimal Inch)

0.0156

Coating/Finish

AlTiN

Coating Process

PVD

Series

Top Not

Insert Material

Carbide

Thickness (mm)

3.18

Included Angle

55

Chipbreaker

Common

Standards

NPGR51L

Number of Cutting Edges

2

Applications

Profiling

Shape

Parallelogram

Product Overview
Profiling Insert: NPGR51L KC5010, Carbide 1/4" Inscribed Circle, 1/8" Thick, 0.40 mm Corner Radius, Series Top Notch
