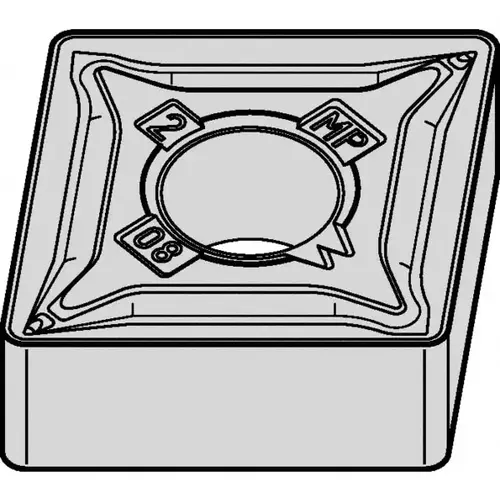

Kennametal 4050686 Turning Insert: CNMG 432MP KCU10, Solid Carbide TiAlN

Item #: 4050686 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$30.25

/each
SAVE UP TO 3.02

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 593 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

KENLOC

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

4050686

Material Grade

C3

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5

Width (Inch)

1/2

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5077

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1691

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Rake Angle

6

Full Radius

No

Insert Shape Code

C

Chip Breaker

MP

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Manufacturer Grade

KCU10

Length Range (Decimal Inch)

0.5000 - 0.6000

Product Overview
Turning Insert: CNMG 432MP KCU10, Solid Carbide 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond
