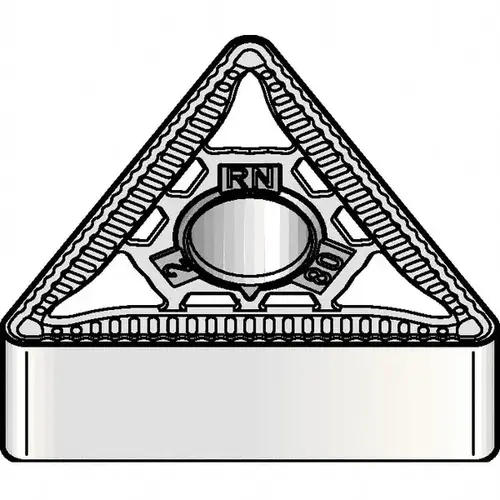

Turning Insert: TNMG332RN KCP25B, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kennametal 5698127-XCP5Click To Copy Turning Insert: TNMG332RN KCP25B, Solid Carbide - pack of 5

Item #: 5698127-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary

$99.90

/package
SAVE UP TO 9.99

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

6

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

KENLOC

Side Clearance

Negative

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

5698127

Material Grade

C2

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.6496

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6496

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.2163

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.50

Corner Radius (Inch)

1/32

Insert Shape

T - Triangle

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

T

Chip Breaker

RN

Insert Style

TNMG

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Chip Breaker Operation

Roughing

Manufacturer Grade

KCP25B

ISO Size Code

160408

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.6000 - 0.6500

ANSI Size Code

332

ISO Insert Code

TNMG160408

Proprietary Coating Designation

Multilayer Coating

Iso Code

TNMG160408RN

ANSI Insert Code

TNMG332

Product Overview
Turning Insert: TNMG332RN KCP25B, Solid Carbide TiOCN Coated, Neutral, 16.5 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series KENLOC
