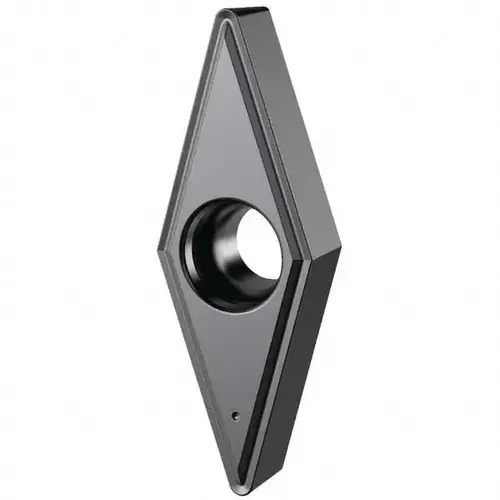

Kennametal 6687070 Turning Insert: VBGT331LF KCS10B, Solid Carbide AlTiN

Item #: 6687070 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$41.18

/each
SAVE UP TO 4.12

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 49 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

Screw-On

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

6687070

Material Grade

S10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

1.3076

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.4354

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

B

Rake Angle

5

Full Radius

No

Insert Shape Code

V

Chip Breaker

LF

Insert Style

VBGT

Insert Size Code

331

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

5

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Chip Breaker Operation

Finishing

Manufacturer Grade

KCS10B

ISO Size Code

160404

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

331

ISO Insert Code

VBGT160404

Iso Code

VBGT160404LF

ANSI Insert Code

VBGT331

Product Overview
Turning Insert: VBGT331LF KCS10B, Solid Carbide AlTiN Coated, 0.6538" Long, 0.1732" Inscribed Circle, 1/64" Corner Radius, Series VBGT
