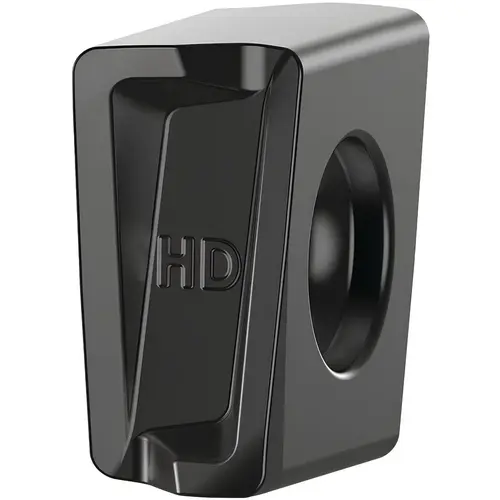

Kennametal 7009765-XCP5 Milling Inserts; Insert Style: LNGQ ; Insert Size: 12 ; Insert Material: Solid Carbide ; Insert Shape: Rectangle ; Manufacturer Grade: KCPM40 ; Corner Radius (Decimal Inch): 0.0312 - pack of 5

Item #: 7009765-XCP5 by Kennametal

See reviewsSee reviews
See reviews summary
In Stock

$248.76

/package
SAVE UP TO 24.88

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Steel

Length (mm)

13.00

ANSI Code

LNGQ120608ERHDKT4

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

LNGQ

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0312

Length (Decimal Inch - 4 Decimals)

0.5118

Manufacturers Catalog Number

LNGQ120608ERHDKT4

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2500

Thickness (Inch)

1/4

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5176

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4780

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5176

Corner Radius (Inch)

1/32

Insert Shape

Rectangle

Chip Breaker

HD

Insert Style

LNGQ

Insert Size Code

120608

Relief Angle

0.00

Included Angle Degree

90

Manufacturer Grade

KCPM40

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Single

Cutter Series Compatibility

Mill 4-12

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Iso Code

LNGQ120608ERHDKT4

Product Overview
Milling Inserts; Insert Style: LNGQ ; Insert Size: 12 ; Insert Material: Solid Carbide ; Insert Shape: Rectangle ; Manufacturer Grade: KCPM40 ; Corner Radius (Decimal Inch): 0.0312
