917TNL 11P SMT CP RCALFD KD Tustin SmartCode - Venetian Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

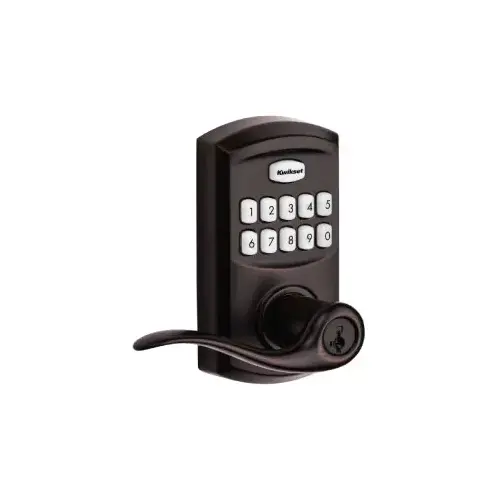

Kwikset 917-TNL-11P-SMT-CP-RCALFD 917TNL 11P SMT CP RCALFD KD Tustin SmartCode - Venetian Bronze

Item #: 917-TNL-11P-SMT-CP-RCALFD by Kwikset

UPC #: 00883351731065

See reviewsSee reviews
In Stock

$194.86

/each
SAVE UP TO 19.49

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Projection

2.6900

Finish

Venetian Bronze

Grade

ANSI/BHMA Grade 2

Lever Length

4.2200

Backset

RCALFD-Round Corner Adjustable UL

Keyway

Kwikset KW1

Function

917-SmartCode Lever

Door Thickness

1-3/8" to 1-3/4"

Strike

RCS-Round Corner Strike

Bore Size

2.1250

Cylinder Type

SmartKey Security

Finish Description

Venetian Bronze

Product Height

Inner Trim: 5-3/8"; Outer Trim: 5-5/32"

Product Length

Inner Trim: 5-5/8"; Outer Trim: 5-19/32"

Included Components

Latch; Strike; Keys; Exterior Assembly; SmartKey Tool; Interior Assembly; Fasteners; 9V Battery; Spindle; Levers; Allen Wrench

Lever Style

TNL-Tustin

Keyblank Grouping

KWIK-KW1-5-1

Rose/Escutcheon Trim

Arch Rose

Door Cross Bore

2.125 Inch

Keying Charges

Residential-Conventional

Product Material

Zinc

Product Type

Touchscreen Lock

Series

SmartCode Series Clear Pack

Box Length

3.5000

Box Width

6.0000

Box Height

10.0000

Operating Temperature

Exterior: -40 to 150°F; Interior: 32 to 140°F

Color Code

11P

Hand

Reversible

Latch Throw

1/2 Inch

Latch Type

Round Corner Adjustable 20 Minute UL

Product Width

Inner Trim: 2-29/32"; Outer Trim: 3-3/32"

Strike Type

Full-Lip

ADA Compliant

YES

Corner Type

Round

Finish Family

Dark Bronze

Standards

BHMA Class AAA; UL Fire Rating

Front Size

1" x 2-1/4"

Features

Traditional Styling; Easy Re-Keying with SmartKey Security; 3 year Battery Life using 9V Up to 30 user Codes; Home Offices; Utility Rooms; Side Doors; Interior Garage Doors; Storage Closets; Rental Properties

Bolt Backset

2-3/8" or 2-3/4"

Manufacturer Parent

Spectrum

Lever Length-Inches

4.22 Inch

Door Edge Bore

1 Inch

Latchbolt Type

Adjustable Latch; Dead Latch

Sub-Series

RL_Electronic_Locks_kwikset_5

Strike Size

2-1/4 Inch

Collection

Tustin

Package Height

8.86"

Package Length

5.32"

Package Width

5.79"

Item Weight

4.17 lbs

Product Overview
SmartCode™ 917 Residential Electronic Lever

Unlock Your Home's Potential - Introducing the SmartCode 917 residential electronic lever. Combining the convenience of keyless entry with the highest residential security grade and the leading designs and finishes that will enhance any door in your home. Perfect for office doors, storage closets or interior garage doors, the SmartCode 917 delivers the right access solution to make your life more convenient, more stylish and more secure. Greater security for greater peace of mind. The SmartCode 917 residential electronic lever has been tested in three areas most important to homeowners like you: security, durability, and finish. It is BHMA certified AAA - the highest residential security rating available. It also features SmartKey Security to protect against advanced break-in techniques.

Features:
  • Highest residential security rating
  • 3-year battery life
  • Reversible lever to fit left-hand or right-hand doors
  • Lock owner can switch between three different locking modes: Auto-lock, Passage, and Disable Passage
User Codes:
  • Up to 30 user access codes
  • Lock owner can program a one-time user code for emergencies, which deletes after first usage
  • For added convenience, lock owners can program the lock from the outside with a programming code
Specifications: Function:
  • Keyed entry electronic lever
Door Prep:
  • Cross Bore 2- 1/8"
  • Edge Bore 1"
Backset:
  • 2 3/8" or 2 3/4"
Door Thickness:
  • 1 3/8" - 1 3/4"
Faceplates:
  • 1" x 2 1/4" round corner standard, drive in avaialbe
Strikes:
  • 2 1/4" full lip round corner
Latch:
  • Adjustable 2 3/8" x 2 3/4"
Bolt:
  • 1/2" throw, dead latch
Door Handing:
  • Reversible for right or left-handed doors
Cylinder:
  • SmartKey Security™
UL Rating:
  • 20 min
Temperature Range:
  • Exterior: -40F to 150F
  • Interior: 32F to 130F
Humidity:
  • Exterior: - 100% condensing
  • Interior: 30% – 95% non-condensing
Easy Installation:
  • Replaces existing door hardware with just a screwdriver
  • No hard wiring needed
  • Operates on a single 9V battery
Innovative Security:
  • BHMA certified AAA. Highest residential security, durability and finish ratings
  • Featuring SmartKey Security™
Finishes:
  • Satin Nickel - 15
  • Venetian Bronze - 11P
  • Satin Nickel - 15
  • Iron Black - 514
  • Polished Chrome - 26
