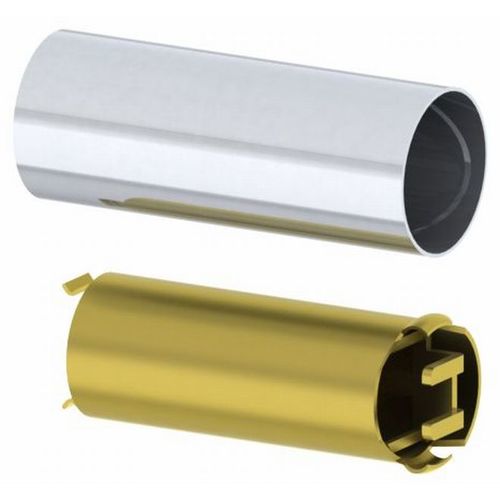

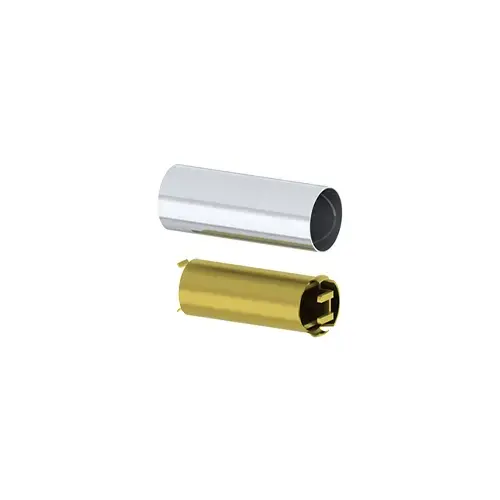

Hager 018339 3500 Series Part

Item #: 018339 by Hager

UPC #: 041359183396

See reviews
Product Description

In Stock $14.86 /each

SAVE UP TO 1.49

Buying in bulk

3500 Series Part

Roll over image to zoom in

Hager 018339 3500 Series Part

Item #: 018339 by Hager

UPC #: 041359183396

See reviews See reviews

In Stock $14.86 /each

SAVE UP TO 1.49

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Latches
  • Many Parts Are Series Specific
  • Certified Hager Parts
  • Made With Strong Materials
  • Many Parts Are Finish Specific

Backset

5" Extension

Product Type

Lock Part/Accessory

For Use With

Must be Used With 2-3/4" Backset Latch bolt For 2500 and 3500 Series locks

ADA Compliant

No

Function Family

Part/Component

Features

Must be Used With 2-3/4" Backset Latch bolt to Achieve 5" Total Backset.

Manufacturer Parent

Hager Companies

Sub-Series

3937

3500 Series Grade 2 lock

Hager 3500 Series Grade 2 lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 when Grade 1 is not required. Our 3500 Series lock offers superior dependability and is backed by a lifetime warranty.

Warranty:
  • Lifetime warranty
Features:
  • No exposed mounting screws
  • Non-handed
  • Conventional cylinder or Small Format Interchangeable Core option available
Certifications:
  • BHMA Certified ANSI A156.2 Series 4000 Grade 2
  • ADA Compliant ANSI A117.1 Accessibility Code (levers only)
  • ANSI A250.13 Severe Windstorm Resistant Component
  • UL/cUL Listed for all functions up to 3 hours for "A" label single doors
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
Lever Options:
  • Apollo knob
  • Archer
  • August
  • Withnell levers
Options:
  • Lead lined (leversets only)
  • Tactile warning (levers only)
  • Antimicrobial coating (26D finish only)
  • Split finish
  • Additional latchbolts and strikes available
Specifications: Standard Door Prep:
  • 2-1/8" (54 mm) diameter (bore)
  • Latch hole: 1" (25 mm) diameter (cross bore)
Exposed Trim:
  • Knobs: Wrought brass or stainless steel
  • Levers: Cast zinc
  • Rose: Wrought brass or stainless steel
Rose Diameter:
  • 3-11/32" (85 mm) levers; 3" (76 mm) knobs
Lock Chassis:
  • Heavy gauge steel, zinc dichromated for corrosion resistance
  • Free wheeling (levers only)
  • Removable thru-bolts (Note: Failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating and warranty)
Keys:
  • Two operating keys supplied per lock
Cylinders/Cores:
  • Brass - keyed different - Schlage C Keyway - Standard
  • Cylinder drilled 6-pin, keyed 5-pin - Standard
  • Other keying options, including keyed 6-pin, available from factory
  • Zero bit cylinders will be 6 pin keyed – standard
  • Small Format Interchangeable Core option available
  • SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately
Door Thickness:
  • Knobs: 1-3/8" - 1-3/4" (35 mm - 45 mm)
  • Levers: 1-3/8" - 2" (35 mm - 51 mm)
Backset:
  • 2-3/4" (70 mm) - Standard
  • 2-3/8" (60 mm) - Optional
  • 3-3/4" (94 mm) - Optional
  • 5" (128 mm) - Optional
Latchbolt:
  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed; keyed functions and 25 function only
  • Square corner faceplate standard, round corner available
Strike:
  • 3935 ASA 1-1/4" x 4-7/8"
    (32 mm x 124 mm) strike - Standard
Functions:
  • 10 Passage, 17 Dummy, 25 Exit (only), 27 Back to Back Dummy (levers only), 40 Privacy, 50 Entry/Office, 53 Entry, 70 Classroom, 73 Corridor (levers only), 79 Keyed Communicating, 80 Storeroom
  • (Notes: Blank plate projection is 13/16" for functions 25 and 79)
Finishes:
  • US3, US4, US10, US10B, US26, US26D (levers only)
  • US3, US32D (knobs only)
