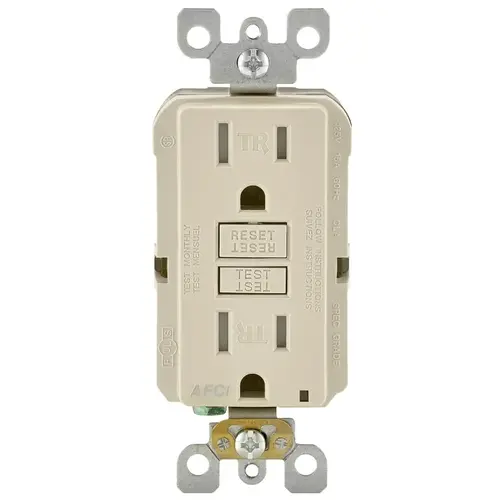

Leviton AFTR1-R36-0KT AFTR1-KT Receptacle, 2 -Pole, 15 A, 125 VAC, NEMA: 5-15R, Light Almond
Item #: AFTR1-R36-0KT by Leviton Mfg. Company, Inc
UPC #: 078477657843
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with, this translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices
- A green LED indicator on the AFCI's face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- TR symbol indicates the device's compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping, impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options back and side wire capable
- Compatible with all Decora® devices and wallplates, available in select colors
NEMA Configuration
5-15R
Color
Light Almond
Operating Temperature
-35 to 66 deg C
Current Rating
15 A
Number of Poles
2
Nomenclature
AFTR1-R36-0KT / R16-AFTR1-0KT
Material
Polycarbonate/Steel/Thermoplastic
Number of Wires
3
Product Overview
TAMPER RESISTANT AFCI OUTLET L
The Smartlockpro outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the obc afci responds by interrupting power. This helps reduce the likelihood of the home's electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home's electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. Afcis are now required by the national electrical code in many areas of the home.
