Lithonia Lighting ELM4L Contractor Select 120-Volt/277-Volt Integrated LED White Emergency Light Fixture with 6-Volt Battery Color/Finish Family

Item #: ELM4L by Lithonia Lighting

UPC #: 191723916287

See reviewsSee reviews
See reviews summary

$241.46

/each
SAVE UP TO 24.15

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Collection Name

ELM

Lumens

640

Product Width (in.)

3.75

Actual Color Temperature (K)

0

Connection Type

Hardwired

Compatible Bulb Type

Integrated LED

Certifications and Listings

UL Listed

Battery Power Type

Ni-Cad

Product Height (in.)

5.9

Material

Thermoplastic

Pack Size

1

Color/Finish Family

White

Product Depth (in.)

3.7

Warranty

5-Year Limited Warranty

Color Temperature

Bright White

Manufacturer Warranty

5-Year Limited Warranty

UNSPSC

39111709

Product Overview

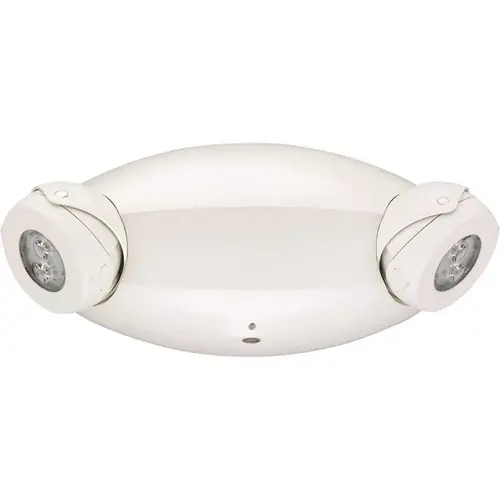

The Quantum Dual Lamp Head LED Emergency Unit from Lithonia Lighting is a slim, general purpose application emergency light. Fully adjustable dual lamp heads allow for light distribution as needed. This unit is ideal for higher mounting height applications requiring attractive equipment with quick installation. It provides a minimum of 90-minutes of illumination upon loss of power.

  • Low-profile, integrated and back-lit test switch with an easily visible multi-color LED status indicator
  • Back-plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes and the front housing allows tool-less access for ease of maintenance
  • Automatic 24-hour recharge after a 90-minute discharge
  • UL damp location listed standard and meets or exceeds all applicable requirements for UL 924, NFPA 101 (current life safety code), NFPA 70 (NEC), NOM (Norma Official Mexicana), California energy commission title 20 section 1605.3 (W) (4), FCC and OSHA
  • 640 Lumens
  • Linear pattern dual LED lamp heads
  • Allows easy maintenance with test switch, status indicator and rechargeable battery
  • Unique track and swivel arrangement permit full range of direction for lamp head adjustment
  • Wall mount and ceiling mount standard
  • Tool-less removal of front cover from back-plate for ease of installation and maintenance
  • Sealed, maintenance-free nickel-cadmium
  • Brownout protection is automatically switched to emergency mode when supply voltage drops below approximately 80% nominal of 120-Volt, 220-Volt, 277-Volt or 347-Volt, other input voltages may vary
  • UV-stable resin resists discoloration from natural and man-made light sources
  • UL damp location listed standard and wet location listed when used with the WPVS accessory
  • 5-year limited warranty (battery is prorated)
