LP1000 Series Mechanical Pushbutton Exit Trim, Satin Chrome

Roll over image to zoom in

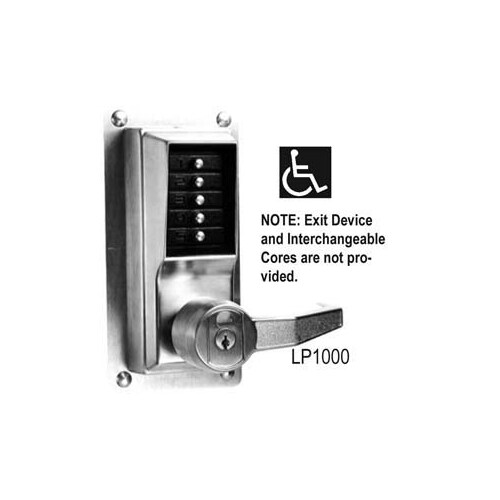

Kaba Access LRP1020S-26D-41 LP1000 Series Mechanical Pushbutton Exit Trim, Satin Chrome

Item #: LRP1020S-26D-41 by Kaba Access

See reviews See reviews

In Stock $768.98 /each

SAVE UP TO 76.90

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Exit Device Strike: Supplied with Exit Device
  • Tailpiece: 2¾" (70 mm) tailpiece for Exit Device operation from outside Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 8 lbs. (3.6 kg)
  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Recessed through bolts may be required for Exit Device preparation
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm) Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Color

Satin Chrome

Cylinder Type

S-LFIC, Schlage

Package Qty

1

Color Code

626/US26D

Lock Platform

Exit Device Trim

Base Material

Brass or Bronze

Finish

Satin Chrome

Handing

RH

Function

20-Combination Entry and Key Override

Finish Description

Satin Chrome

Lever Style

WL-Winston Lever

Product Type

Exit Device Trim

Trim Design

Escutcheon with Lever

Device Type

Surface Vertical Rod

For Use With

Simplex LP1000 Mechanical Pushbutton Locks

Hand

Right Hand

Warranty

3 yr

Product Material

Heavy-Duty Cast Front Housing

Trim Style

Escutcheon With Lever

Cylinder Type Used

LFIC, Schlage

Device Trim Function

Egress with Exit Device Key Override

Function Family

Pushbutton Exit Device Trim

Product Projection

3-15/16 Inch

Trim Plate Width

4-3/8 Inch

Trim Plate Height

8-3/4 Inch

ADA Compliant

No

Finish Family

Satin Chrome

Manufacturer Parent

DormaKaba

Lever Style Family

Straight Return Lever

Sub-Series

LRP1020-S-26D-41

Door Thickness

1-3/4" - 2-1/4"

Access Type

Mechanical

Alternate Part Number-1

119627

Lock Category

Exit Device Lock

Proximity Format

Pushbutton Combination

Knob/Lever Style

Lever

Mechanical Pushbutton Exit TrimSimplex LP1000

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features:
  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Rim Exit Device - Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)
  • Cannot be used with mortise design or vertical rod Exit Devices
  • Compatibili
  • Single access code—one easy-to-manage code for all users
  • Factory-handed; not field reversible
  • A cost effective access control solution
Specifications: Exit Device Compatibility:
  • Black & Decker (K-12) QED111/112, Detex 10/F10 Series
  • Cal Royal 5000/F5000, Dorma 9100, 9300
  • Dorex 9500PR/9500FR, Dorex 8500R/8500F
  • Detex Advantex Series 10, 20, 21,40, 50, 51
  • Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
  • Von Duprin 22, 88 NL, 98, 99
  • *(requires special K-Hub Adapter Kit)
Operation Modes:
  • Pushbutton Access
  • Exit Device may be "dogged" without affecting the LP1000
Construction:
  • Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
Numeric Keypad:
  • Vandal resistant, solid metal pushbuttons
Handing:
  • Factory-handed; not field reversible
Tailpiece:
  • 2 3/4" (70 mm) tailpiece for Exit Device operation from outside
  • Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
Minimum Stile Recommended:
  • 5" (127 mm)
Weight:
  • 8 lbs. (3.6 kg)
Interchangeable Cores:
  • Small format—Best and equivalents (6 or 7-pin length); core not included
Removable Cores:
  • Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Door Preparation:
  • Recessed through bolts may be required for Exit Device preparation
Door Thickness:
  • 1 3/8" (35 mm) to 2 1/4" (57 mm)
  • Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
Accessibility Standard:
  • Americans with Disabilities Act (ADA); fixed ADA-compliant lever
Durability:
  • Weather resistant
Fire Rating:
  • 3-hour UL/ULC fire rating for "A" labeled doors
Warranty:
  • 3-year warranty
Finishes:
  • 605 - Bright Brass
  • 609 - Antique Brass
  • 626 - Satin Chrome
  • 625 - Bright Chrome
