30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Diameter
2" (51 mm)
Glass Fabrication
One 3/4" (19 mm) Hole Per Fitting
Finish
Matte Black
Length
1-3/4" (44 mm)
Type
Flat Cap
Material
Stainless Steel
Finish/Color
Matte Black

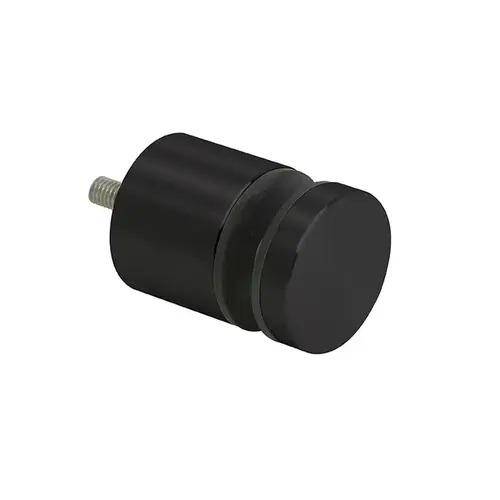

These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) in diameter with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated with Alloy 316 grade stainless steel in brushed or polished finishes.
SPECIFICATIONS:
For use with 1/2"–27/32" (12–21.52 mm) Tempered Monolithic or Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: One 3/4" (19 mm) Diameter Hole Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available for this item by clicking on the icon above called Technical Details
Product Warning:
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
.
