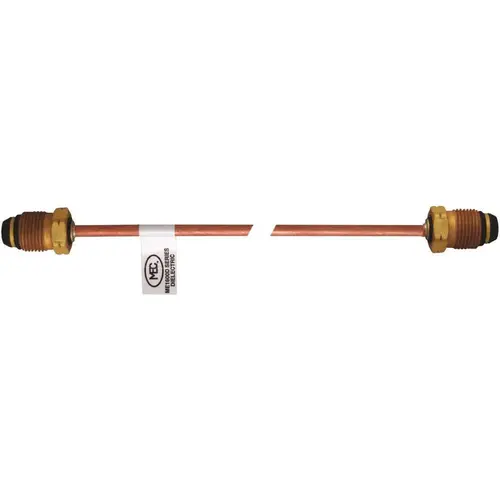

MEC ME1680D-12 ME1600D Series Dielectric Hogtail, Pol X Pol, Short Nipple, 3/8 in. Tubing Size, 12 in. L
Item #: ME1680D-12 by MEC
UPC #: 815505016858
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
5 years from the date of manufacture
Pack Size
1
UNSPSC
40141603
Package Quantity
1
UL Listed
No
ADA Compliant
No
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
ME1600D Series Dielectric pigtails/ hog tails are intended to isolate metallic piping from sources of electrical current and to help prevent galvanic corrosion when used on underground containers. The ME1600D dielectric pigtail/ hog tail would typically be installed at the ASME tank directly upstream of the first stage regulator prior to underground piping, isolating the underground metallic piping from electric current. These pigtail and hog tail assemblies come with 2 brass connectors brazed onto a heavy wall annealed copper tube with a 250 psig pressure rating. The 1/4 and 3/8 tube have a pull test rating of 500 and 750 lbs. respectively.
- Male hard nose pol x male hard nose pol, 7/8 nut
- 3/8 tube O.D
- Short nipple
- UL listed and tested in accordance with UL 569
