30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 1/2" (12 mm) Monolithic Tempered Glass
- Typically Used as the Base Channel for Glass Railing Systems or Windscreens
- Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
- Custom Cutting and Mitering Service
- Test Reports Available
167 Lb (75.75kg)
Drilling Center to Center

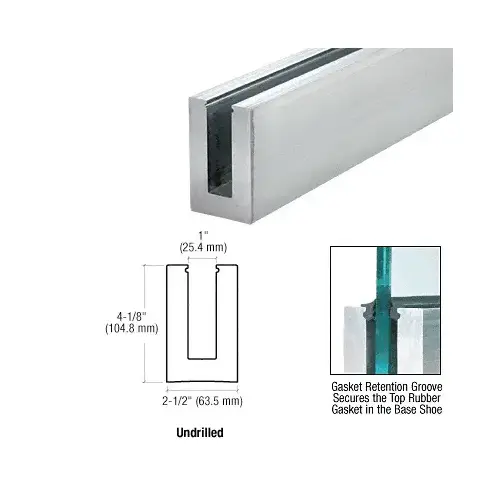

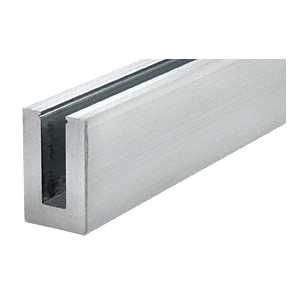

The CRL B5S Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. The five tested methods of attachment can be found on pages 160R to 161R, and associated fasteners are shown on pages 165R to 167R in our CRL63R catalog. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
Material: 6063 Aluminum Alloy T52 Temper
Typical Use: Heavy-Duty Square Base Shoe used with 1/2" (12 mm) glass as the base channel for glass railing systems. Also available counter bored and drilled.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
