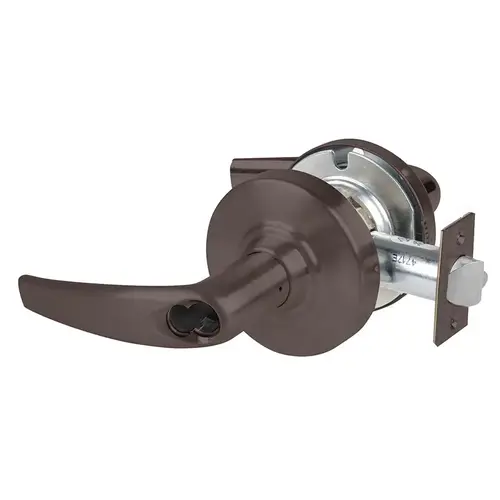

Schlage Commercial ND53JD ATH 613 ND Series Entry Large Format Less Core Athens with 13-247 Latch 10-025 Strike Oil Rubbed Bronze Finish
Item #: ND53JD ATH 613 by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Entrance, Turn/Push-Button Locking, Pushing and Turning Button Locks Outside Lever, Requiring Use of Key Until Button is Manually Unlocked, Pushing Button Locks Outside Lever Until Unlocked By Key or By Turning Inside Lever, Inside Lever is Always Free
- ANSI/BHMA Certified A156.2-2011
- Handing: All ND-Series lever locksets are non-handed.
- 1-5/8" to 2-1/8" Door Range
- Commercial Grade 1
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- UL Listed for 3 Hour Fire Door
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
Finish
Oil Rubbed Bronze
Backset
2-3/4" Backset
Design
Athens
Strike
ANSI Strike
Function
Entry
Series
ND Series
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Fire Rated
3 Hours {A}
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75
Package Length
9.5
Package Volume
372.28125
Package Width
8.25
Handing
Reversible
Alternate Part Number-1
186257
Standard Latch
13-247: Deadlatch - 2-3/4" Backset - Square corner, 1-1/8" x 2-1/4"
Keys Included
2
Electronic
No
Cylinder
JD - Schlage FSIC Prep Less Core
Standard Strike
10-025: ANSI, no box, 1-1/4" x 4-7/8" (1-3/16" Lip length) - Default Strike
ANSI/BHMA Standards
F109
Cylinder and Keyways
S123
Keying
None (Select for Less Cylinder Options)
Lever Style
ATH - Athens
Lock Type
Cylindrical
Handle Type
Lever
Keyed
Yes
Collection
ND-Series
Grade
Grade 1
Duty Level
Heavy Duty
Segment
Door Hardware
Door Handing
Non-Handed
Substrate Type
Zinc and Steel
IMAP Policy
Yes
Product Overview
Entrance Lock Function, Grade 1, Cylindrical Lock, Schlage FSIC Less Core, Athens Lever, Dark Oxidized Satin Bronze Oil Rubbed
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque, lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
