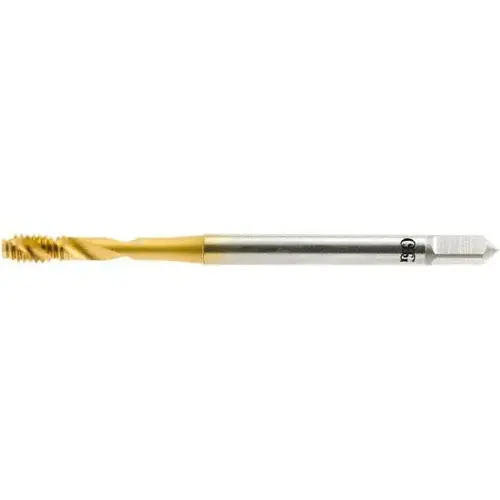

Spiral Flute Tap: 9/16-12 UNC, 3 Flutes, Modified Bottoming, 2B Class of Fit, Vanadium High Speed Steel, TIN Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

OSG 1645096125Click To Copy Spiral Flute Tap: 9/16-12 UNC, 3 Flutes, Modified Bottoming, 2B Class of Fit, Vanadium High Speed Steel, TIN Coated

Item #: 1645096125 by OSG

See reviewsSee reviews
See reviews summary
In Stock

$202.02

/each
SAVE UP TO 20.20

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Vanadium High-Speed Steel

Flute Style

Spiral

Material Application

Alloy Steel

Overall Length (mm)

110.00

Helix Angle

45

Number of Flutes

3

Thread Direction

Right Hand

Threads Per Inch

12

Series

16450

Thread Standard

UNC

Chamfer

Modified Bottoming

Class Of Fit

2B

Coating/Finish

TiN

Coolant Through

No

Overall Length (Decimal Inch)

4.3310

Shank Diameter (Decimal Inch)

0.4290

Square Size (Decimal Inch)

0.3220

Thread Length (Decimal Inch)

0.6650

Thread Size (Inch)

9/16-12

UNSPSC Code

27112806

Vendor Drop Ship

N

Flute Direction

Right Hand

Neck Length (Decimal Inch)

1.9720

Square Length (Decimal Inch)

0.5000

Tapping Depth (Decimal Inch)

1.6563

Thread Limit

H5

Product Overview
Spiral Flute Tap: 9/16-12 UNC, 3 Flutes, Modified Bottoming, 2B Class of Fit, Vanadium High Speed Steel, TIN Coated 110 mm OAL, Right Hand Thread, H5, Series 16450
