Corner Chamfer End Mill: 1/2" Dia, 5/8" LOC, 4 Flutes, 0.02" Chamfer Width, Solid Carbide TiAlN

Roll over image to zoom in

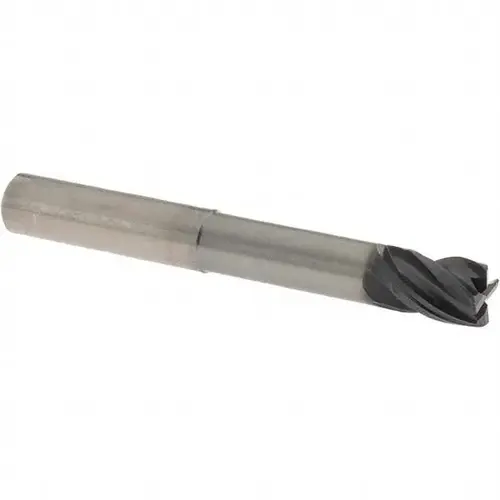

OSG VG446-5003 Corner Chamfer End Mill: 1/2" Dia, 5/8" LOC, 4 Flutes, 0.02" Chamfer Width, Solid Carbide TiAlN

Item #: VG446-5003 by OSG

See reviewsSee reviews
See reviews summary

$196.88

/each
SAVE UP TO 19.69

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Flute Type

Variable

Shank Type

Weldon Flat

Helix Angle

35

Number of Flutes

4

Pitch

Normal

Chipbreaker

No

Length Type

Extended

Cutting Direction

Right Hand

Series

VG446

Variable Helix

No

Coating/Finish

TiAlN

Coolant Through

No

Length Of Cut (Decimal Inch - 4 Decimals)

0.6250

Length of Cut (Inch)

5/8

Manufacturers Catalog Number

VG446-5003

Overall Length (Decimal Inch)

4.0000

Overall Length (Inch)

4

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.5000

Shank Diameter (Inch)

1/2

Vendor Drop Ship

N

Centercutting

Yes

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

Yes

Flute Direction

Right Hand

Helix Style

Medium

Material Removal Type

Roughing & Finishing

Mill Diameter (Decimal Inch)

0.5000

Mill Diameter (Inch)

1/2

Neck Diameter (Decimal Inch)

0.4700

Single Or Double End

Single

Variable Index

Yes

Reach Length (Inch)

2-1/4

Mill Diameter Tolerance

+0.0000 to -0.0015 in

Chamfer Angle

45

Reach Length (Decimal Inch)

2.2500

Chamfer Length (Decimal Inch)

0.0020

Chamfer Width (Decimal Inch)

0.0200

Shank Diameter Tolerance

h6

Product Overview
Corner Chamfer End Mill: 1/2" Dia, 5/8" LOC, 4 Flutes, 0.02" Chamfer Width, Solid Carbide 4" OAL, 1/2" Shank Dia, 35 degree Helix, TiAlN Coated, Centercutting
