PL Series 150 Amp 30-Space 30-Circuit Main Breaker Indoor Load Center

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

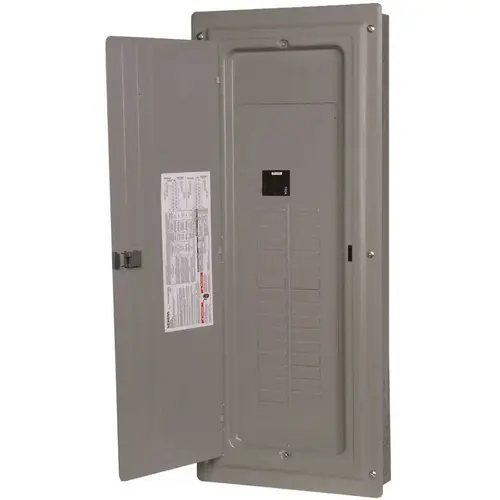

Siemens P3030B1150CU PL Series 150 Amp 30-Space 30-Circuit Main Breaker Indoor Load Center

Item #: P3030B1150CU by Siemens AG

UPC #: 040892650402

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Voltage

120/240

Mounting Type

Plug In

Warranty

Lifetime

Amperage

150 Amp

Phase

1

Manufacturer Warranty

Lifetime

Certifications and Listings

UL Listed

Indoor/Outdoor

Indoor

Load Center Type

Main Breaker

Load center width (in.)

16.25

Maximum Amperage

150

Number of Circuits

30

Number of Phases

1

Number of Spaces

30

Pack Size

1

UNSPSC

39121101

Product Overview

Siemens introduces PL Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented insta-wire neutral/ground system, convertibility, copper bussing, and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.

  • Single phase 150 Amp main breaker load center with 30 spaces/30 circuits
  • Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
  • Copper bus
  • All devices are provided with 2 factory installed ground bars
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • All PL series devices convertible from main lug to main breaker and vice versa
  • Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
  • A rigid, sturdy base pan provides the ruggedness required for the harshest applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
