CRL DE4100PB Polished Brass 4" x 10" Center Lock With Bottom Rail Extension Rod Throw - One Point Without Handle

Item #: DE4100PB by CR Laurence

See reviews

$1,764.03 /each

SAVE UP TO 176.40

Buying in bulk

Roll over image to zoom in

CRL DE4100PB Polished Brass 4" x 10" Center Lock With Bottom Rail Extension Rod Throw - One Point Without Handle

Item #: DE4100PB by CR Laurence

See reviews See reviews

$1,764.03 /each

SAVE UP TO 176.40

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Allows You to Lock Doors at a Comfortable Height
  • Available in Several Architectural Finishes
  • Available With or Without Back-to-Back "D" Handle
  • Completely Fabricated and Ready to Install
  • Custom Colors Available on Special Order
  • For 1/2" (12 mm) Tempered Glass

Handle

None

Minimum Order

1 Each

Finish

Polished Brass

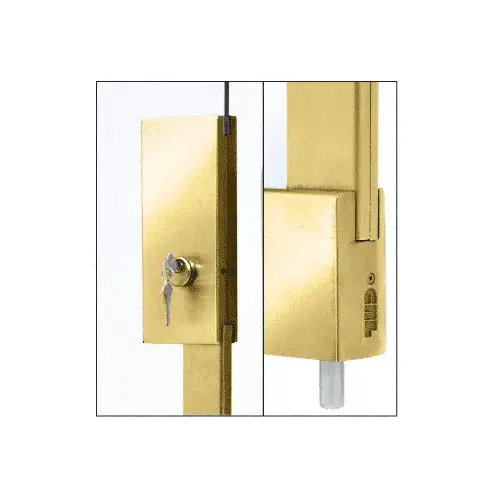

This CRL 4" x 10" Center Lock has an extended throw that latches through the bottom door rail and into the floor. It is completely activated at a comfortable distance above the floor utilizing a built-in Adams Rite® 1860-01 Lock with a modified extension rod allowing the throw to enter the floor. A small edge channel that travels down from the Center Lock to the bottom rail conceals the extension rod. The Center Lock is non-handed, with a Thumbturn for the inside, and a Keyed Cylinder for the outside. You can order them with or without an 8" (203 mm) back-to-back "D" Handle.
ORDERING NOTE: This innovative system is intended for the fabrication of new doors only. Retrofit applications are not recommended because the bottom door rail must be factory-modified to accept the Extension Rod Throw, and the door glass requires a specially shaped cut-out to accept the Center Lock. Please contact Technical Sales Department for ordering assistance. Important Notes: NOTE: In applications where A.D.A. Codes are a concern, a 10" (254 mm) tall bottom rail should be used with this Center Lock.
