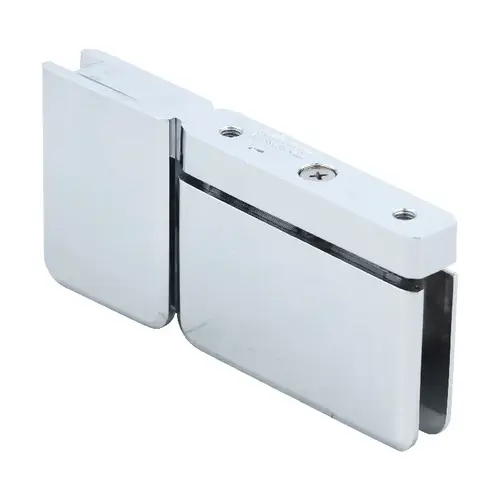

CRL PPH07CH Polished Chrome Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp

  • Use Monolithic Tempered Glass
  • 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
  • Attached U-Clamp has Same Design and Profile as Hinge
  • Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
  • Stocked in Several Popular Finishes, with Custom Finishes Available
  • This hinge series is patented (Patent No. 5,297,313) - CE Certification
  • Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems)
See Full Product Description
SALE

$86.80 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Use Monolithic Tempered Glass
  • 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
  • Attached U-Clamp has Same Design and Profile as Hinge
  • Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
  • Stocked in Several Popular Finishes, with Custom Finishes Available
  • This hinge series is patented (Patent No. 5,297,313) - CE Certification
  • Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems)

  • Product Description
  • Technical Details 10
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Height

2" (51 mm)

Minimum Order

1 Each

Width

3-5/8" (92 mm)

3/8" (10 MM) GLASS

100 lbs/45 kg - 31"/787 mm

MAXIMUM CAPACITIES

Using 2 Hinges

5/16" (8 MM) GLASS

100 lbs/45 kg - 31"/787 mm

Finish

Polished Chrome

  • Use Monolithic Tempered Glass
  • 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
  • Attached U-Clamp has Same Design and Profile as Hinge
  • Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry
  • Stocked in Several Popular Finishes, with Custom Finishes Available
  • This hinge series is patented (Patent No. 5,297,313) - CE Certification
  • Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems)
CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the DK Hardware Sales Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
