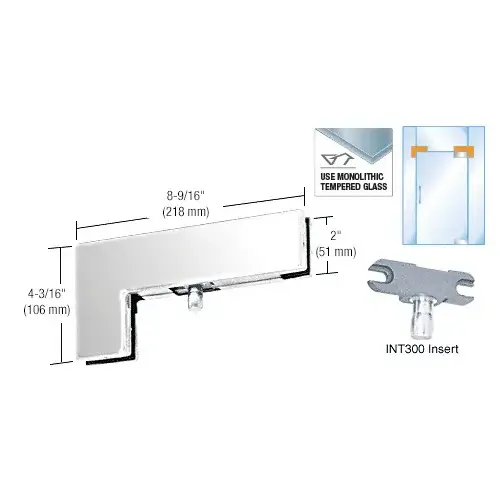

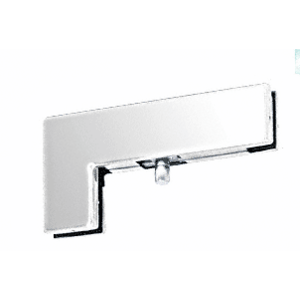

CRL PH40PS Polished Stainless Sidelite Transom Patch With INT300 Insert
Item #: PH40PS by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
3/8" or 1/2" (10 or 12 mm)
Polished Stainless Steel
The CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch
Template and Instructions
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
