Power Distribution Board 8 Fused Output with Fire Trigger Relay

Roll over image to zoom in

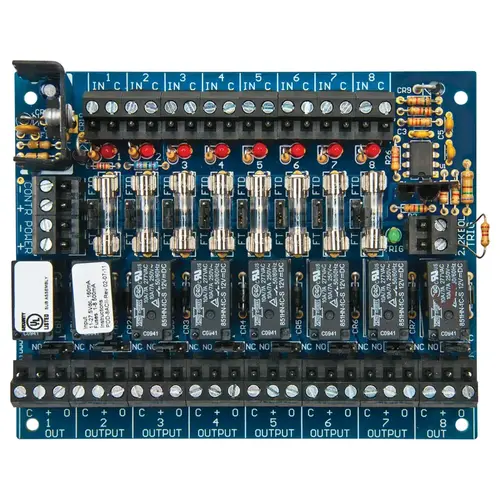

Assa Abloy Electronic Security Hardware - Securitron PDB-8F8R Power Distribution Board 8 Fused Output with Fire Trigger Relay

Item #: PDB-8F8R by SECURITRON

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Eight Power Outputs
  • Eight Individually Configurable Relays with Status LEDs
  • End of Line Resistor Master Trigger for Fire System Interface
  • LED Indicator for Trigger Status
  • MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked

Fire Rated

No

Origin

USA

BAA Qualified

Yes

Product Overview

Power Distribution Board, 8 Fused outputs, Fire Trigger/Relay

Securitron AccuPower Power Distribution Boards (PDB) split the primary AC or DC output from a power supply into multiple outputs of the same voltage type to separate equipment onto individual circuits. Each output has a status LED indicator. Main input has a status LED indicator. 12 or 24V output (based on power supply output). Accepts AC or DC input/provides same output. PDB-4 has an on/off power switch. PDB-8 has a main power indicator that indicates AC, DC or reverse DC input. RoHs lead-free. Made in USA. Individually fused. Separate fuse for main input surge protection, standard automotive ATO sizes. PTC circuit breakers rated holding current at 130¡ F. Accepts AC or DC input up to 32V. Outputs rated Class 2 power limited. Fuses for individual outputs are standard 3AGC.

Power supplies are necessary for electromechanical access control.

Securitron also offers energy efficient power supplies.
