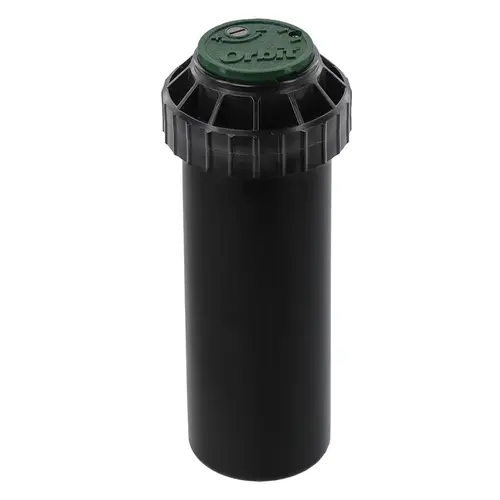

To adjust the Orbit 55460 Pop-Up Gear Drive Sprinkler Head (Voyager), you can follow these steps:
1. Adjusting the Arc:
Locate the adjustment screw on the top of the sprinkler head.
Use a flat-head screwdriver to turn the screw. Turning it clockwise will decrease the arc, while turning it counterclockwise will increase it. The arc can be adjusted from 40 to 360 degrees.
2. Adjusting the Radius:
Find the radius adjustment screw, which is usually located near the nozzle.
Again, use a flat-head screwdriver to turn the screw. Turning it clockwise will reduce the spray distance, while turning it counterclockwise will increase it.
3. Setting the Spray Pattern:
Pull up the sprinkler stem and hold it in place.
Rotate the stem to set the desired spray pattern. Make sure the arrow on the stem points to the right edge of the area you want to water.
4. Reinstalling the Sprinkler:
Once adjustments are made, slide the sprinkler stem back into the canister and tighten the cap.
