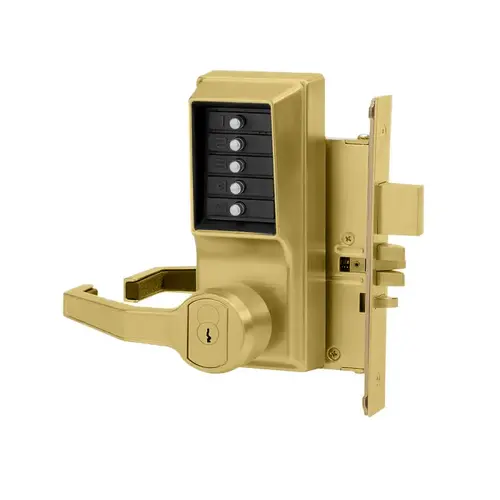

Kaba Access R8148S-03-41 Mortise Combination Lever Lock Key Override Passage Lockout with Deadbolt Schlage FSIC Prep Less Core Bright Brass

Item #: R8148S-03-41 by Ilco

See reviewsSee reviews
See reviews summary
In Stock

$867.78

/each
SAVE UP TO 86.78

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Backset: 2¾" (70 mm)
  • Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
  • Key Override Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Base Material

Brass

Special Marks

Complies with ADA accessibility guidelines

Package Qty

1

Lock Platform

Mortise Lock

Cylinder Type

Schlage FSIC Less Core

Color Code

605/US3

Color

Bright Brass

Hand

Right-Hand

Warranty

3 year

Function

Combination Entry With Deadbolt

Handle Type

Lever

Door Thickness

1-3/4" to 2-1/4"

ADA Compliant

YES

Included Components

Thumbturn; Key

Locking Device

Mortise

Minimum Stile Width

5 Inch

Features

Vandal Resistant; Solid Metal Pushbuttons; Durability; Weather Resistant; No Battery

Product Type

Cylindrical Lock

Manufacturer Parent

DormaKaba

Programming Method

Keypad

Number of Access Codes

1

Key Override Core Type

LFIC

Key Override Brand

Corbin Russwin

Sub-Series

CL_Push_Button_Locks_kaba_access_69

Product Overview

Mortise Combination Lever Lock, Key Override, Passage, Lockout, with Deadbolt, Schlage FSIC Prep, Less Core, Bright Brass

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Provides exterior access by combination, while allowing free egress.
