Richelieu Hardware 12624601 Infrared Proximity Sensor for 12 V and 24 V
Item #: 12624601 by Richelieu Hardware
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Diameter
9/16 in
Finish
White
Material
Plastic
Style
Contemporary
Application
Closet
Length
2 7/16 in
Operation
Proximity
Lighting Type
LED
Features
With Integrated Infrared (IR) Switch
Mounting
Recessed, Surface
Control System
IR
IP
IP20
Recess Depth
2 15/32 in
Tension (V)
24 V, 12 V
Product Overview
Infrared Proximity Sensor is primarily a door contact on/off switch: open the door and lights turn on, close the door and lights turn off.
Secondary function available to act as a simple on/off motion activated switch only.
How IR Proximity Sensor Works:
Option #1 - Door Contact Switch
Automatically switches on and off the lights connected to it when a door or drawer is opened or closed. Installation of the sensor is located at the front of cabinet or drawer at a
distance of 50 mm or less.
Option #2 - On/Off Switch
The setup from automatic door sensor to on/off switch can be changed by pressing the key for three seconds.
For the ideal operation of IR 12/24, it is recommended that it not be used for white reflecting objects, as well as shiny or reflective surfaces.
Option #3 - Simple Mode + Dimmer On/Off Switch
Automatically switches on and off the lights connected to it. Simply approach the sensor with your hand or keep your hand steady in front of the sensor to vary the light intensity.
Advantages And Benefits

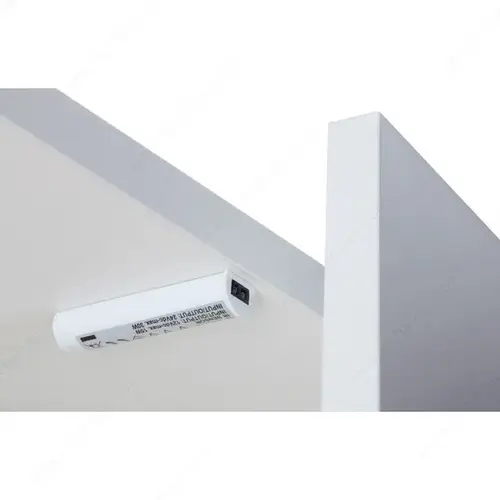

- Easy surface-mount installation with two-sided tape option
- Can be installed flush with the board by making a hole 9/16 in (14 mm) in diameter and at least 2 1/2 in (63 mm) deep
- Easy installation to control lights
- Plug-and-play, quick connect feature
- No hard wire or cutting of wires
- Surface or recess installation
Important Information
Maximum installation distance of 50 mm for door contact.
- Input/output 12 V dc max. 36 W
- Input/output 24 V dc max. 72 W
When set to the second option IR ON/OFF, the device turns the lights on and off, simply by bringing your hand within 5 cm of the sensor.
For a perfect operation of IR 12/24, it is recommended to avoid use of white reflecting objects, as well as shiny or reflective surfaces.
On/off control occurs on low voltage side with prescribed power supplies and lights.
Included Product(S)
- 79 in (2 m) long cord and terminal block included for connecting 12 V and 24 V LED lights
Application
- To be used with our line of 12 or 24 V dc lights, exclusive to Richelieu, from Italy
Disclaimer
This switch functions with 12V Group A or new 24V. Just note the difference in max wattage for each system
Use prescribed power supply and lights only
Indoor use only
Secondary function available to act as a simple on/off motion activated switch only.
How IR Proximity Sensor Works:
Option #1 - Door Contact Switch
Automatically switches on and off the lights connected to it when a door or drawer is opened or closed. Installation of the sensor is located at the front of cabinet or drawer at a
distance of 50 mm or less.
Option #2 - On/Off Switch
The setup from automatic door sensor to on/off switch can be changed by pressing the key for three seconds.
For the ideal operation of IR 12/24, it is recommended that it not be used for white reflecting objects, as well as shiny or reflective surfaces.
Option #3 - Simple Mode + Dimmer On/Off Switch
Automatically switches on and off the lights connected to it. Simply approach the sensor with your hand or keep your hand steady in front of the sensor to vary the light intensity.
Advantages And Benefits
- Easy surface-mount installation with two-sided tape option
- Can be installed flush with the board by making a hole 9/16 in (14 mm) in diameter and at least 2 1/2 in (63 mm) deep
- Easy installation to control lights
- Plug-and-play, quick connect feature
- No hard wire or cutting of wires
- Surface or recess installation
Important Information
Maximum installation distance of 50 mm for door contact.
- Input/output 12 V dc max. 36 W
- Input/output 24 V dc max. 72 W
When set to the second option IR ON/OFF, the device turns the lights on and off, simply by bringing your hand within 5 cm of the sensor.
For a perfect operation of IR 12/24, it is recommended to avoid use of white reflecting objects, as well as shiny or reflective surfaces.
On/off control occurs on low voltage side with prescribed power supplies and lights.
Included Product(S)
- 79 in (2 m) long cord and terminal block included for connecting 12 V and 24 V LED lights
Application
- To be used with our line of 12 or 24 V dc lights, exclusive to Richelieu, from Italy
Disclaimer
This switch functions with 12V Group A or new 24V. Just note the difference in max wattage for each system
Use prescribed power supply and lights only
Indoor use only
