Richelieu Hardware 1551170 Complete 3-Step Plug & Play Dimmer Kit
Item #: 1551170 by Richelieu Hardware
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Black, Satin Nickel
Watts
18 W
Operation
Touch
Lighting Type
LED
Standards and Certifications
UL
Features
Dimmable, Touch Function
Control System
Touch
Price Point
Optimum
Tension (V)
24 V
Product Overview
Touch step dim function / Class I
Recess the included metal touch switch knob (brushed nickel finish) in a convenient, easy-to-reach location and control your new high-powered 3W LED lights like never before!
Touch once and the lights are activated to 30% intensity. Touch again to reach 60% intensity, and a third time for 100% intensity. One last touch, and the lights turn off.
Advantages And Benefits
- Only one item to order for the 3-step touch dimming function for up to 6 lights of Invoke (155121170/155122170/155121090/155122090) or Pro (156121170/156122170) or with Swivel (154121170/154122170).
- Easy installation.
- One item to order with an easy quick-connect system.
Application
- 3-step touch dimming function for up to 6 lights.
Included Product(S)

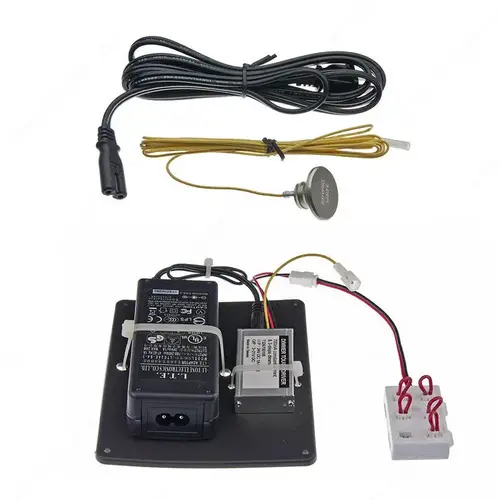

Kit as shown includes power supply for 1 to max. 6 lights, terminal for plugging in 1 to 6 lights from the Invoke or Pro line of lights, and one 3-step touch-sensitive knob/dimmer.
Important Information
Power supply:
- Input: 100-240 Vac 50/60 Hz
- Output: 3-21 Vdc 700mA constant current
- 70" (6 ft) power cord
Disclaimer
When installing the dimmer switch please take extra consideration for the touch sensitive (yellow) wire:
* Ensure it is not installed in a confined manner (i.e. with other wires in an encasement) as heat can build up
* That it is not kinked in any way
* That it is not damaged, nicked or fastened in any way as to cause a nick or damage to the wire/casing. Please route touch sensitive (yellow) wire so that it will not be damaged or pinched when the cabinet is installed (pushed to the wall)
* Please only use insulated staples or plastic ties to secure cord and do not use metal staples or ties as it can interfere with the touch sensitive (yellow) wire
NOTE: IF any of the above takes place it can affect the performance of the dimmer switch
- All unused power supply output plugs must have jumpers installed.
- Always connect the LED light to the power supply first and then connect the power supply to the mains; failure to do so may cause damage to the existing diode.
Recess the included metal touch switch knob (brushed nickel finish) in a convenient, easy-to-reach location and control your new high-powered 3W LED lights like never before!
Touch once and the lights are activated to 30% intensity. Touch again to reach 60% intensity, and a third time for 100% intensity. One last touch, and the lights turn off.
Advantages And Benefits
- Only one item to order for the 3-step touch dimming function for up to 6 lights of Invoke (155121170/155122170/155121090/155122090) or Pro (156121170/156122170) or with Swivel (154121170/154122170).
- Easy installation.
- One item to order with an easy quick-connect system.
Application
- 3-step touch dimming function for up to 6 lights.
Included Product(S)
Kit as shown includes power supply for 1 to max. 6 lights, terminal for plugging in 1 to 6 lights from the Invoke or Pro line of lights, and one 3-step touch-sensitive knob/dimmer.
Important Information
Power supply:
- Input: 100-240 Vac 50/60 Hz
- Output: 3-21 Vdc 700mA constant current
- 70" (6 ft) power cord
Disclaimer
When installing the dimmer switch please take extra consideration for the touch sensitive (yellow) wire:
* Ensure it is not installed in a confined manner (i.e. with other wires in an encasement) as heat can build up
* That it is not kinked in any way
* That it is not damaged, nicked or fastened in any way as to cause a nick or damage to the wire/casing. Please route touch sensitive (yellow) wire so that it will not be damaged or pinched when the cabinet is installed (pushed to the wall)
* Please only use insulated staples or plastic ties to secure cord and do not use metal staples or ties as it can interfere with the touch sensitive (yellow) wire
NOTE: IF any of the above takes place it can affect the performance of the dimmer switch
- All unused power supply output plugs must have jumpers installed.
- Always connect the LED light to the power supply first and then connect the power supply to the mains; failure to do so may cause damage to the existing diode.
