Rixson Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
CONTENTS:
27 Series Offset Closer Body
253000 Cement Case
274750 Finished Cover Plate
252050 Bottom Arm
R180 Top Offset Pivot
FEATURES AND SPECIFICATIONS:
Single Acting, Handed
Selective Hold Open (SHO) Stocked
Separate and Independent Valves for Closing Speed, Latching Speed, and Backcheck Adjustments
Built-in Positive Dead Stop Prevents the Door From Swinging Beyond the Opening Degree Specified. (Stock 90 and 105 )
"PH" Models Meet ANSI A117.1 Physically Handicapped 8.5 Lb. A.D.A. Opening Force
450 Lb. (204 kg), 48" (1.22 m) Width Capacity. Manufacturer Recommends Using One Intermediate Pivot for Doors up to 90" (2.29 m) Tall, and One Additional Intermediate Pivot for Each Additional 30" (762 mm)
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

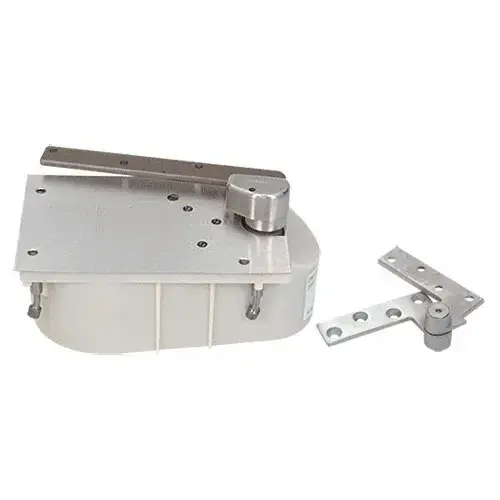

Rixson 27105SH0LHSC Satin Chrome 27 Series Left Hand 3/4" Offset 105 degree Selective Hold Open Floor Mounted Closer - Complete Package
Item #: 27105SH0LHSC by Rixson
See reviewsSee reviews
In Stock
$1,194.49
/eachSAVE UP TO 119.45
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 10 Year Limited Warranty
- 450 Lb. (204 kg) Capacity
- Adjustable Backcheck
- ANSI 156.4 Grade 1
- Built-In Positive Dead Stop
- For Exterior or Interior Doors
- Selective Hold Open Feature
- UL Listed
Type
105º Selective Hold Open
Handing
Left Hand
Brand
Rixson
Finish
Satin Chrome
UL Listed
Yes
Door Opening
105
Includes
253000, 274750LHSC, 252050LHSC, R180SC
Certification
ANSI 156.4 Grade 1
Closer Type
Floor Closer
Finish/Color
Satin Chrome
Selective Hold Open (On Off)
Yes
Built In Positive Dead Stop
Yes
Maximum Weight 3/4 Offset
450 Pounds
Recommended Door Type
Aluminum, Hollow Metal
Similar
J990NHOD, CRL9077SC, CRL9075SC
Interior Or Exterior Doors
Yes
Door Width 3/4 Offset (Inches)
48
Adjustable Back Check
Yes
Replacement Parts
253000, 274750LHSC
Special Order
Non Stocked And Accessories
Body Length
11-1/8
Body Height
4-1/16
Body Width
6-1/8
Door Width 3/4 Offset
48 in. (1219.2 mm)
Selective Hold Open
Yes
Product Overview
Rixson Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
CONTENTS:
27 Series Offset Closer Body
253000 Cement Case
274750 Finished Cover Plate
252050 Bottom Arm
R180 Top Offset Pivot
FEATURES AND SPECIFICATIONS:
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
