S55 Monterey 4+5 Bi-Fold Bi-Part Interior Swing with Flush Sill and Exterior Lever Lock White Powder Coat

Roll over image to zoom in

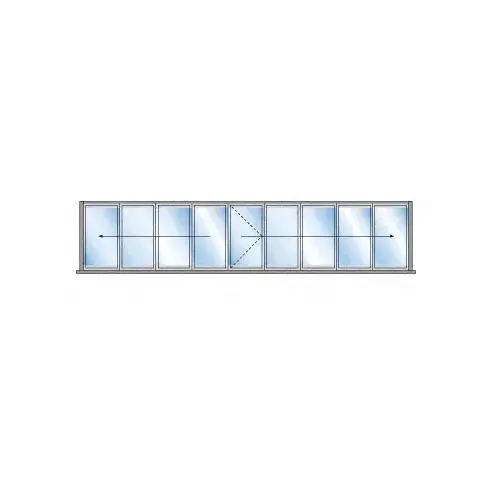

CRL M5B45F1WHL S55 Monterey 4+5 Bi-Fold Bi-Part Interior Swing with Flush Sill and Exterior Lever Lock White Powder Coat

Item #: M5B45F1WHL by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Easy to Operate Panels Open and Close Effortlessly
  • Fully Assembled, Ready for Glazing
  • New Construction or Retrofit, Commercial and Residential
  • Thermally Broken Option Available
  • Weather Resistant, Designed for Interior/Exterior Use
  • White, Black, and Wood Grain Powder Coat, Satin and Black Bronze Anodized are Standard, with Custom Colors Available

Type

4+5 Bi-Fold

Swing

Inswing

Style

Exterior Lever Lock

Finish

Gloss White

Maximum Panel Weight (Pounds)

135

Maximum Height Interior Application (Inches)

120

Glazing Type

Tempered Insulated,Tempered Monolithic,Tempered Laminated

Frame Depth

2-5/16

Configuration

4+5 Biparting

Glazing Thickness

3/4, 1, 1/4, 3/8, 1/2

Minimum Overall Opening Width (Inches)

154

3 Point Keyed Lock

Yes

Door Type

Framed Bi-Folding Doors

Top Hung

Yes

Panel Thickness

2-1/8

Panel Stile Width (Inches)

2-3/8

Flush Sill

Yes

Finish/Color

Gloss White


The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.

.
