Turning Insert: CCGT32.51-UM 1105, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5722978-XCP10 Turning Insert: CCGT32.51-UM 1105, Solid Carbide - pack of 10

Item #: 5722978-XCP10 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$465.97

/package
SAVE UP TO 46.60

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

Insert Thickness

3.97

Included Angle

80

Insert Material

Carbide

Series

CoroTurn 107

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0156

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3650

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.27

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

C

Chip Breaker

UM

Secondary Workpiece Material Code

M

Insert Style

CCGT

Insert Size Code

32.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Manufacturer Grade

1105

Length Range (Decimal Inch)

0.3000 - 0.4000

Corner Radius (mm)

0.40

Iso Code

CCGT 09 T3 04-UM 1105

Product Overview

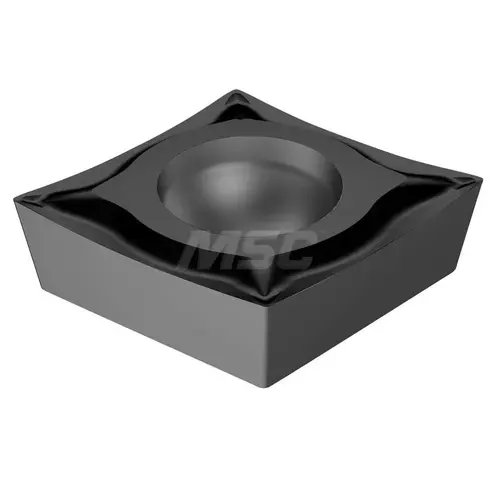

Turning Insert: CCGT32.51-UM 1105, Solid Carbide TiAlN Coated, Neutral, 0.365" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series CoroTurn 107
