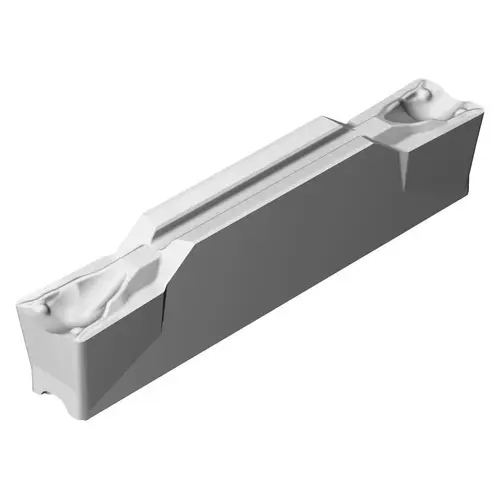

Sandvik Coromant 5736554 Grooving Insert: N123x2H2TF 1105, Solid Carbide TiAlN

Item #: 5736554 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$74.56

/each
SAVE UP TO 7.46

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Series

CoroCut 1-2

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

N123H2-0400-0004-TF 1105

Overall Width (Decimal Inch - 4 Decimals)

0.1713

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1575

Insert Thickness (Decimal Inch)

0.1713

Maximum Depth of Cut (Decimal Inch)

0.9170

Multi-use Tool

Yes

Overall Width (mm)

4.35

Rake

Positive

Insert Hand

Neutral

Chip Breaker

TF

Insert Style

N123x2

Maximum Depth of Cut (mm)

23.30

Cutting Height (Decimal Inch)

0.1713

Manufacturer Grade

1105

Maximum Depth Of Cut Range (Decimal Inch)

0.3000 to 1.0000

Insert Seat Size

H

Maximum Depth Of Cut Range (mm)

20.00+

Corner Radius (mm)

0.40

Cutting Width (mm)

4.00

Iso Code

N123H2-0400-0004-TF 1105

Cutting Height (mm)

4.35

Product Overview
Grooving Insert: N123x2H2TF 1105, Solid Carbide TiAlN Finish, Neutral, 4 mm Cutting Width, 23.3 mm Max Depth, Series CoroCut 1-2
