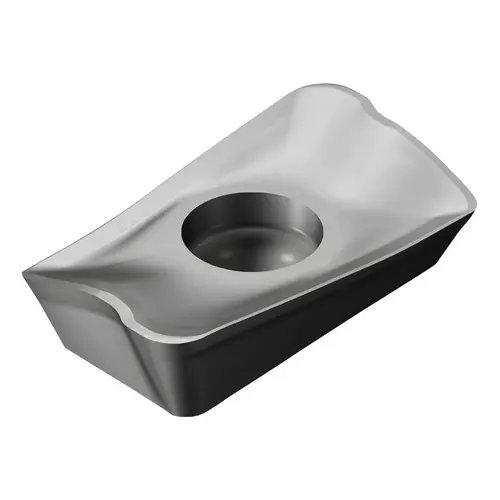

Sandvik Coromant 5745611 Milling Insert: 530, Solid Carbide Bright/Uncoated

Item #: 5745611 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$29.50

/each
SAVE UP TO 2.95

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Steel

ANSI Code

R390-17 04 08E-PL 530

Number of Cutting Edges

2

Standards

ANSI

Thickness (mm)

4.76

Insert Material

Cermet

Series

R390

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.6181

Manufacturers Catalog Number

R390-17 04 08E-PL 530

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1875

Thickness (Inch)

3/16

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3780

Width (mm - 2 Decimals)

17.00

Coating Classification

Uncoated

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.6181

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3780

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Rake Angle

23

Chip Breaker

PL

Insert Style

R390

Insert Size Code

170408

Hole Diameter (Decimal Inch)

0.1614

Relief Angle

19.00

Included Angle Degree

90

Hole Diameter (Mm) ( - 0 Decimals)

0.16

Maximum Depth of Cut (mm)

15.70

Manufacturer Grade

530

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

R390

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Corner Radius (mm)

0.80

Iso Code

R390-17 04 08E-PL 530

Product Overview
Milling Insert: 530, Solid Carbide Uncoated, 4.76 mm Thick, 17 mm Wide
