Grooving Inserts; Insert Style: C2I ; Insert Size Code: E ; Cutting Width (Decimal Inch): 0.7496 ; Cutting Width (mm): 2.00 ; Insert Hand: Neutral ; Maximum Depth of Cut (Decimal Inch): 0.0453 - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

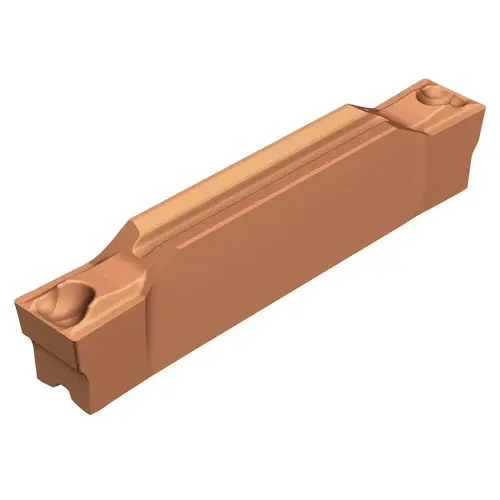

Sandvik Coromant 8194251-XCP5 Grooving Inserts; Insert Style: C2I ; Insert Size Code: E ; Cutting Width (Decimal Inch): 0.7496 ; Cutting Width (mm): 2.00 ; Insert Hand: Neutral ; Maximum Depth of Cut (Decimal Inch): 0.0453 - pack of 5

Item #: 8194251-XCP5 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$406.22

/package
SAVE UP TO 40.62

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

Parting & Grooving Tool Holders

ANSI Code

C2I-E2N-0200-0004-GF1225

Number of Cutting Edges

2

Insert Material

Carbide

Series

CoroCut® 2

Coating Process

PVD

Coating/Finish

TiAlN/TiAlSiN/TiSiN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

C2I-E2N-0200-0004-GF1225

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.7496

Insert Holding Method

Clamp

Lead Angle

0.000

Maximum Depth of Cut (Decimal Inch)

0.0453

Multi-use Tool

No

Rake

Neutral

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Full Radius

No

Chip Breaker

GF

Secondary Workpiece Material Code

M

Insert Style

C2I

Insert Size Code

E

Maximum Depth of Cut (mm)

1.15

Cutting Height (Decimal Inch)

0.7496

Manufacturer Grade

1225

Face Grooving

Yes

Corner Radius (mm)

0.4

Cutting Width (mm)

2.00

Iso Code

C2I-E2N-0200-0004-GF1225

Cutting Height (mm)

19.04

Product Overview
Grooving Inserts; Insert Style: C2I ; Insert Size Code: E ; Cutting Width (Decimal Inch): 0.7496 ; Cutting Width (mm): 2.00 ; Insert Hand: Neutral ; Maximum Depth of Cut (Decimal Inch): 0.0453
