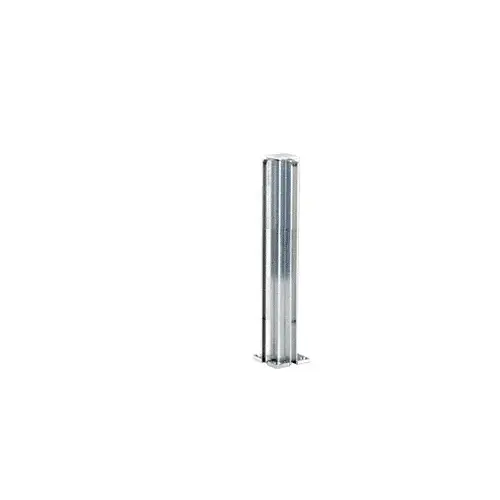

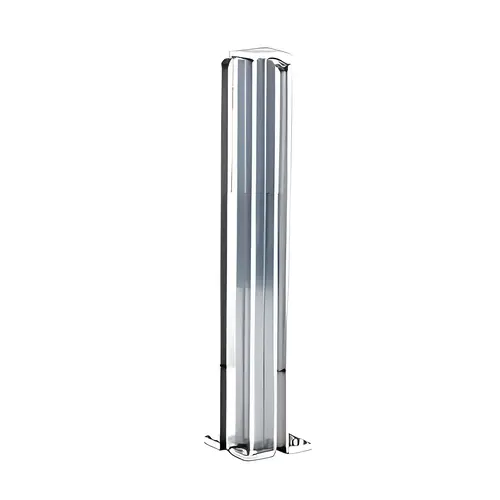

CRL D990A16CR Satin Anodized 16" Corner Design Series Partition Post
Item #: D990A16CR by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Stock Post Sizes, RED-E to Ship
- Top Cap and Mounting Base Included
16 in (406.4 mm)
1 Lb (454g)
These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components. Instructions and requirements, parts page. Important Notes: The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
