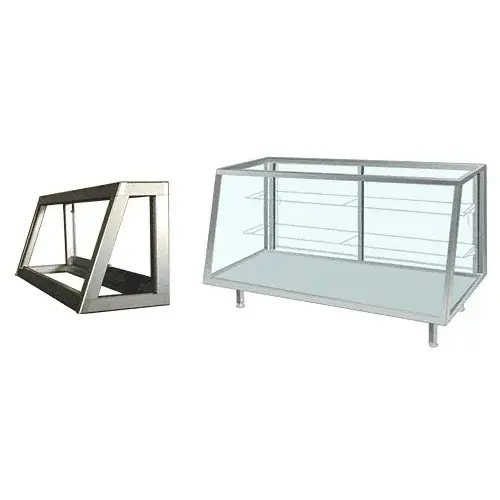

The CRL Custom Size Newport Slant Front Showcase Frames use the same construction as our custom Newport Frame but has a slanted front face angled at 20 degrees from bottom to top. This type of case is most commonly used in retail shops to display small items on glass shelving. Also used as pastry cases which do not require refrigeration. The Sliding rear doors have ball bearing roller hardware, and allow easy access to case contents.
The Newport Slant Front Showcase Frame is available in satin anodized, gold anodized and bronze duranodic finishes. Be sure to specify bottom depth when ordering, and consider that top depth decreases 1" for every 2-3/4" (69 mm) in height. For example, a case frame 30" (762 mm) deep at the bottom and 40" (1.02 m) tall is only 15-1/2" (393 mm) deep at the top.NOTE: Optional legs, standards, brackets, reflectors and locks must be ordered separately. All custom showcase frames are fabricated and shipped from our Los Angeles Service Center. Be sure of dimensions and requirements before ordering, as custom frames may not be returned for credit.
Optional legs, standards, brackets, reflectors and locks must be ordered separately. All custom showcase frames are fabricated and shipped from our Los Angeles facility. Be sure of requirements before ordering, as custom frames may not be returned for credit.
Information Needed When Ordering Any Showcase:
Specify Model Required
Specify Finish of Frame
Specify Length of Frame
Specify Height of Frame
Specify Depth of Frame
Sliding Doors
Standards
Brackets
Reflector Assembly
Locks
Showcase Legs
Any Special Requirements
For information or questions regarding any showcase please contact DK Hardware Sales.
Product Warning:
All you need to supply is the glass, a 3/4" (19 mm) floor board, legs, standards and brackets.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL D4350A Satin Anodized Custom Size Newport Slant Front Showcase Frame
Item #: D4350A by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Comes K.D. for Easy Shipping and Ready for Immediate Assembly
- Custom Made to Your Specifications
Depth
Specify (Max.15-1/2)
Height
Specify (Max.40)
Width
Specify (Max.30)
Finish
Satin Anodized
Configuration
Slant Front
Finish/Color
Satin Anodized
Product Overview
The CRL Custom Size Newport Slant Front Showcase Frames use the same construction as our custom Newport Frame but has a slanted front face angled at 20 degrees from bottom to top. This type of case is most commonly used in retail shops to display small items on glass shelving. Also used as pastry cases which do not require refrigeration. The Sliding rear doors have ball bearing roller hardware, and allow easy access to case contents.
The Newport Slant Front Showcase Frame is available in satin anodized, gold anodized and bronze duranodic finishes. Be sure to specify bottom depth when ordering, and consider that top depth decreases 1" for every 2-3/4" (69 mm) in height. For example, a case frame 30" (762 mm) deep at the bottom and 40" (1.02 m) tall is only 15-1/2" (393 mm) deep at the top.NOTE: Optional legs, standards, brackets, reflectors and locks must be ordered separately. All custom showcase frames are fabricated and shipped from our Los Angeles Service Center. Be sure of dimensions and requirements before ordering, as custom frames may not be returned for credit.
Optional legs, standards, brackets, reflectors and locks must be ordered separately. All custom showcase frames are fabricated and shipped from our Los Angeles facility. Be sure of requirements before ordering, as custom frames may not be returned for credit.
Information Needed When Ordering Any Showcase:
For information or questions regarding any showcase please contact DK Hardware Sales.
Product Warning:
All you need to supply is the glass, a 3/4" (19 mm) floor board, legs, standards and brackets.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
