Horizontal Sliding Barbara Model Pass-Thru Assembly With D7 Header Satin Anodized

Roll over image to zoom in

CRL D1029A Horizontal Sliding Barbara Model Pass-Thru Assembly With D7 Header Satin Anodized

Item #: D1029A by CR Laurence

See reviewsSee reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Custom Sized, Ships Knocked-Down
  • Satin Anodized or Dark Bronze Finish
  • Three Panels: Two Fixed, One Sliding
  • Two Overhead Track Options

Finish

Satin Anodized

Panels

O = Fixed, X = Sliding

Overhead Track

D7

3 Panels

O = Fixed, X = Sliding

Maximum Width

108

Size

Specify

Maximum Height

50

Model

Barbara

Finish/Color

Satin Anodized

Panel Designation

O = Fixed, X = Sliding

Panel Quantity

3

Configuration

OXO

Product Overview

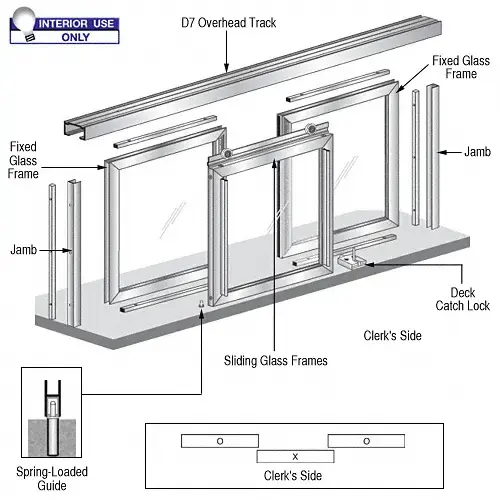

TheCRL Barbara Model Pass-Thru Window is the most popular window of its type. Three equal panels (two end fixed and one central slider) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.
Different models are available with two types of headers: The standard D7 Overhead Track, or the D1670 overhead Track which matches 1-3/4" x 3" (44.5 x 76.2 mm) store front tube.
Suggested glass cutting formula for using CRL glazing vinyl is available in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders.
NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly is sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.
Weight: Varies per custom size
Product Warning:
Maximum frame size 108" (2743 mm) W x 50" (1270 mm) H with three equal panels

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
