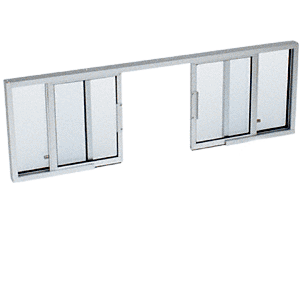

CRL SW3618A Satin Anodized Horizontal Sliding Service Window OXXO Format with 1/8" Glass with Screen
Item #: SW3618A by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Available in Vertical and Horizontal Formats
- Dual Panels Slide Outward
- Each Unit is Customized to Fit Your Needs
- For Light Duty Applications of 50 or Fewer Uses Per Day
Panels
O = Fixed, X = Sliding
Glazing
1/8" (3 mm) Glass
Screen
Yes
Finish
Satin Anodized
Material
Aluminum
Window Style
Horizontal Sliding
Glazing Thickness
1/8
Glazing Type
Tempered (Specify)
Finish/Color
Satin Anodized
Panel Designation
O = Fixed, X = Sliding
Glazed
Yes
Configuration
OXXO,OXXO
These CRL Horizontal Sliding Service Windows have two sliding and two fixed panels. Models are available non-glazed or pre-glazed with your choice of 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass, either with or without a screen. All units are shipped assembled. Surround Frame not available for insulating glass models. An overhang is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Glazing: 1/8" (3 mm) or 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (On Some Models); Vinyl Supplied on All Models
Instructions Included
