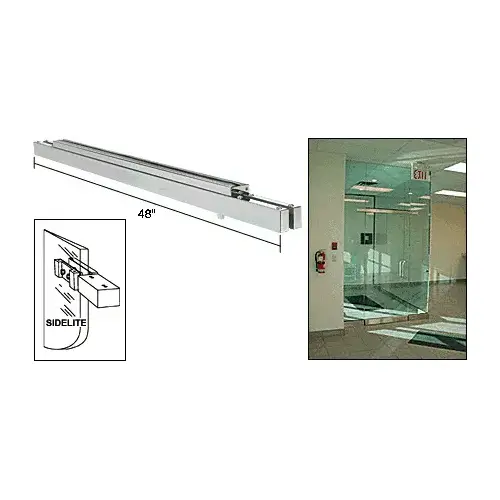

CRL NFH4SAS Satin Anodized Single Narrow Floating Header with Surface Mounted Top Pivots - for 36" Wide Opening

1 reviews

$994.70 /each In Stock

Item #: NFH4SAS by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL NFH4SAS Satin Anodized Single Narrow Floating Header with Surface Mounted Top Pivots - for 36" Wide Opening

1 1 reviews

$994.70 /each In Stock

Item #: NFH4SAS by CR Laurence

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Use Monolithic Tempered Glass
  • Creates an Even Sight Line When Used with CRL Door Rails
  • Custom Finishes Available on Special Order
  • For 1/2" (12 mm) Tempered Glass Only
  • Six Standard Architectural Finishes
  • Stock Single 36" (914 mm) and Double 72" (1.83 m) Headers, with Custom Sizes Available
  • Supported by Glass Side Panels

Height

1-5/8 in (41.2 mm)

Width

1-7/8 in (47.6 mm)

Length

36" (914 mm)

Size

1-7/8" x 1-5/8" (48 x 41 mm)

Overall Size

1-7/8" x 1-5/8" (47 x 41 mm)

Minimum Order

1 Each

Finish

Satin Anodized

CRL Narrow Floating Headers with Walking Beam Top Pivots work with CRL PH20 and PH21 Series Top Door Patch Hardware Fittings, and with all CRL 1/2" (12 mm) Heavy Glass Door Rails. When used with CRL Door Rails you get an even sight line, as the width of the Narrow Header matches the width of the Door Rail. For use with Free-Swinging Bottom Pivots or Floor Closers, Standard Narrow Floating Headers with Walking Beam Top Pivots are fabricated for use in 1/2" (12 mm) glass-to-glass configurations. Custom lengths, glass-to-wall configurations, and Floating Headers for offset pivots are also available.
For more information, contact DK Hardware Sales at Department.
Application Tip: When trying to show the maximum amount of glass, but still looking for the security of a magnetic shear lock, the CRL Narrow Floating Header offers that functionality.
Stock Narrow Floating Headers: For 1/2" (12 mm) glass-to-glass installations, with CRL9040WBP Walking Beam Top Pivots. Important Notes: STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures. Length and installation type must be specified when ordering. If the weight of the transom above the header exceeds 100 pounds (45.4 kg) the transom will need to be supported from the ceiling to take weight off of the header and prevent bowing. The customer can use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact Technical Sales.
