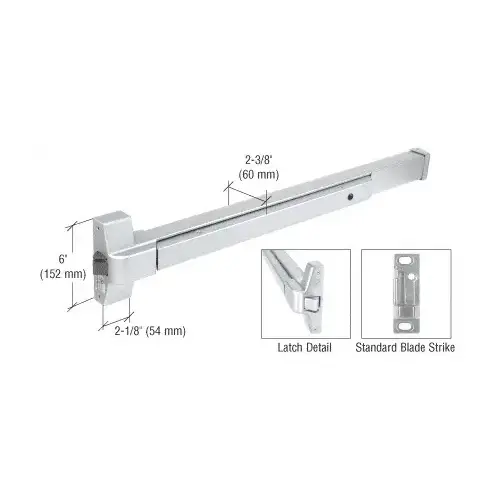

CRL DL950A Satin Anodized Touch Bar Rim Panic Exit Device
Item #: DL950A by CR Laurence
In Stock $161.76 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Use with Medium and Wide Stile Aluminum Doors
- Minimum Force Releases Locking Mechanism
- Painted Carbon Steel and Satin Stainless Steel Finishes Available
Type
Push-Pad Rim
Finish
Satin Aluminum
Material
Steel
Handing
Non Handed
Model
DL950
Door Thickness
1-3/4
UL Listed
Yes
Includes
Mounting Hardware
Finish/Color
Satin Aluminum
Panic Bar Width Net
34 7/8
Push Pad Width
21
Recommended Door Type
Aluminum,Wood,Hollow Metal
Minimum Stile Width (Inches)
4-/14
Similar
311295C4628
Panic Head Base Width
2-1/8
Panic Bar Base Height (Inches)
2
Panic Type
Rim Exit Device
Replacement Parts
DL911SCKDA,DL911SCKAA,DL95STR1KE,DL9DKEY
Panic Head Height (Inches)
6
Panic Bar Projection (Inches)
2-3/8
Panic Dogging
Standard Hex Key Dogging
Our CRL Push-Pad Rim Panic Devices can be used on either single doors, or double doors with a mullion. Minimum required door stile width is 4-1/4" (108 mm). For your convenience, these Devices come fabricated to 34-7/8" (886 mm) overall length, ready-to-install on 36" (914 mm) wide doors without any modification, and may be cut down to fit doors as narrow as 30" (762 mm). A dogging feature defeats locking action during business hours. A Blade Strike is included with each Exit Device.
Our Cat. No. DL950SS Satin Stainless Steel Panic Device offers a more durable and attractive architectural finish, but as with the other finishes, the internal components should not be exposed to moisture or a corrosive environment.
For keyed entry, an optional Cat. No. DL911SC Series, or other brand, Rim Cylinder is required.
Product Warning:
This Panic Exit Device is fabricated with a 34-7/8" overall length so they are ready-to-install on 36" doors without modification. 36 inch width is the maximum door size. Minimum recommended stile width is 4-1/4" (108 mm).
