This

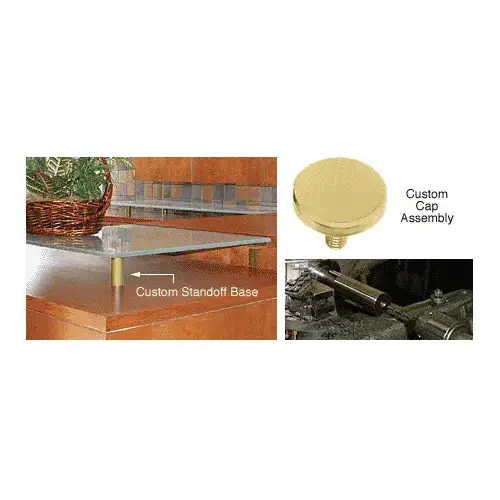

CRL Custom Cap Assembly is made to match your Custom Standoff Base, and is now available from the Manufacturing Division of CRL. As a result of customer requests for special lengths and finishes of Standoff Products, CRL provides custom fabrication of 1/2" (12 mm), 3/4" (19 mm), 1" (25 mm), 1-1/4" (32 mm), 1-3/4" (44 mm) and 2" (50 mm) standoff base and cap assemblies.
Available Finishes: Polished Stainless, Brushed Stainless, Satin Chrome, Polished Brass, Brushed Brass and Standard Powder Coated Colors.
The thread sizes for Custom Caps and Bases are:
For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.
For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter, drill and tap for 1/4"-20 screw thread.
For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter, drill and tap for 5/16"-18 screw thread.
For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8"-16 screw thread.
Custom Cap Thickness, unless noted otherwise, will be as follows:
For 1/4-20 and 5/16-18 threaded rods, the Cap will be 1/4" (6 mm) thick.
For 3/8-16 threaded rods, the cap will be 3/8" (10 mm).
All Threaded Rods included with Custom Caps will be 1-1/4" (32 mm) in length, unless noted otherwise. All Caps include two matching diameter washers and one grommet.
CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For more information contact our Technical Sales Department.
.
