30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- With 4" Square DR4S Series Door Rails
4" Top and Bottom Square Rail
Maximum Panel Weight (Pounds)
Maximum Door Width
Maximum Door Height

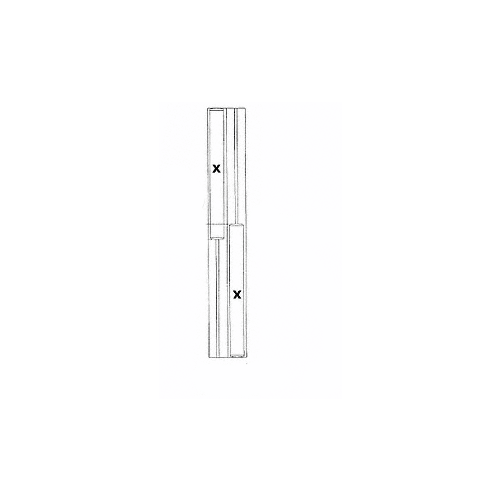

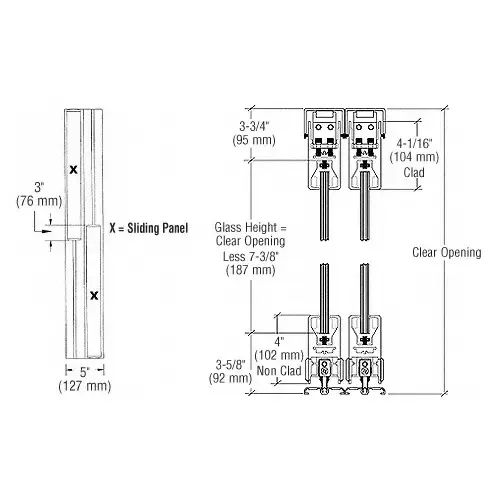

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Square Rails Top and Bottom utilizes our popular Wedge-Lock® Glass Securing System. The DR4S Series Door Rails are used for all door and fixed panels, and are custom fabricated to your specifications. The doors can be ordered with or without locks in the bottom rail. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
