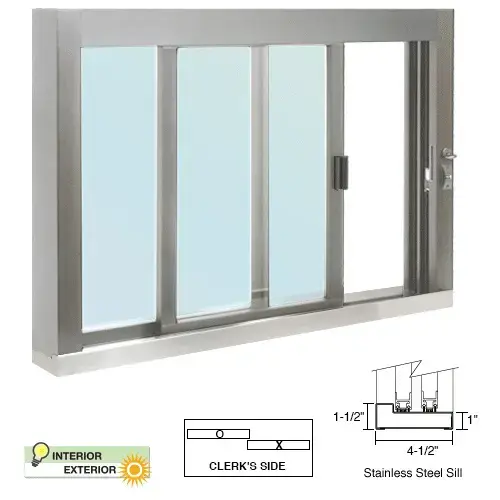

CRL SCDW4836S0XGA Standard Size Self-Closing Deluxe Service Window Glazed with S.S.Step-Sill Satin Anodized
Item #: SCDW4836S0XGA by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Ships Factory Glazed 1/4"Clear Tempered Glass
- OX Clerkside (X=sliding panel)
- Sturdy Thumb Turn with Hook Bolt, and Self-Latching Handle
- Popular 47-1/2" W x 35-3/4" H Frame Size fits 48" x 36" Opening
- S.S.Step-Sill with Water Dam, Manual Open/Self-Closing
Frame Depth
4-1/2, 4-1/2
Frame Width
47-1/2"
Frame Height
35-3/4"
Finish
Satin Anodized
Clerkside
OX
Latch Type
Self Latching
Glazing Type
Clear Tempered
Finish/Color
Satin Anodized
Sill Height (Inches)
1-1/2
Deal Tray Included
No
Security Feature
Latching Handle,Thumbturn Hook Throw Deadlock With Indicator
Glazed
Yes
Material
Aluminum
Width
48
Sill Condition
Stainless Steel Sill
Glazing Thickness
1/4
Screen
No
Height
36
CRL Standard Size Self-Closing Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.
The Self-closing function is powered by a hydraulic mechanism concealed in the header.
Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.
Product Warning:
Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
.
