CRL Standard Size Self-Closing Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.
The Self-closing function is powered by a hydraulic mechanism concealed in the header.
Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.
Product Warning:
Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

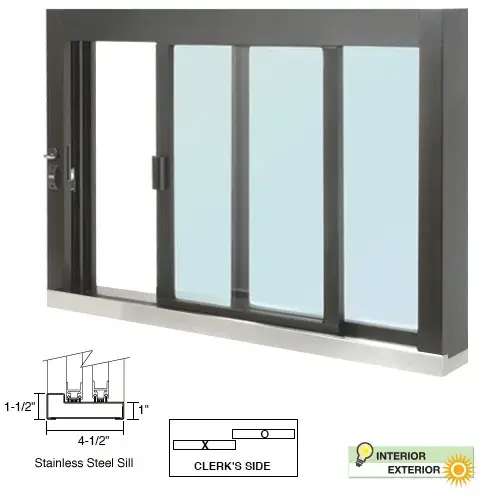

CRL SCDW4836SX0GDU Standard Size Self-Closing Deluxe Service Window Glazed with S.S.Step-Sill Black Bronze Anodized
Item #: SCDW4836SX0GDU by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ships Factory Glazed 1/4"Clear Tempered Glass
- XO Clerkside (X=sliding panel)
- Sturdy Thumb Turn with Hook Bolt, and Self-Latching Handle
- Popular 47-1/2" W x 35-3/4" H Frame Size fits 48" x 36" Opening
- S.S.Step-Sill with Water Dam, Manual Open/Self-Closing
Finish
Black Bronze Anodized
Frame Height
35-3/4"
Frame Width
47-1/2"
Frame Depth
4-1/2, 4-1/2
Clerkside
XO
Handle Type
Self Latching
Sill Height
1-1/2 in. (38.1 mm)
Height
36
Screen
No
Glazing Thickness
1/4
Sill Condition
Stainless Steel Sill
Width
48
Material
Aluminum
Glazed
Yes
Security Feature
Latching Handle,Thumbturn Hook Throw Deadlock With Indicator
Deal Tray Included
No
Sill Height (Inches)
1-1/2
Finish/Color
Black Bronze Anodized
Glazing Type
Clear Tempered
Latch Type
Self Latching
Product Overview
CRL Standard Size Self-Closing Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.
The Self-closing function is powered by a hydraulic mechanism concealed in the header.
Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.
Product Warning:
Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
