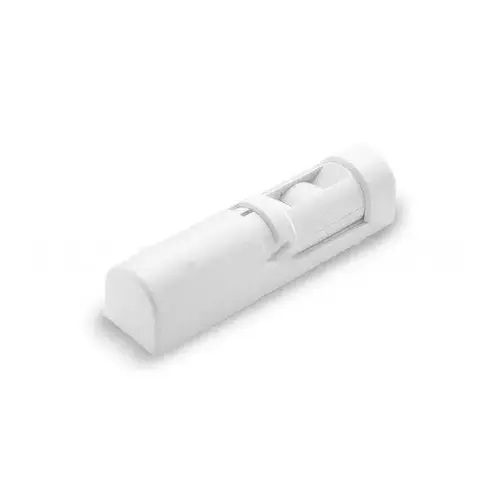

Schlage Electronics SCAN-II-W Scan II Passive Infrared Motion Sensor

Item #: SCAN-II-W by Schlage Electronics

See reviewsSee reviews
See reviews summary
In Stock

$720.52

/each
SAVE UP TO 72.05

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ADA Approved

False

Healthy Solution

Touchless

Product Type

Access Control Part/Accessory

healthy_solution

Touchless

Manufacturer Parent

Allegion

Number of Relays

(2) Form C

Contact Switch

35 mA @12 VDC; 38 mA @24 VDC

Color

White

Function

Motion Sensor

Sub-Series

EAC_Motion_Detector_schlage_electronic_1

ADA Compliant

No

Operating Temperature

-20° to 120°F

Application

Indoor Use

Standards

UL294; ULC-S319; C

Features

Adjustable Relay Latch Time From 0.5 to 64 Seconds; Wall or Ceiling Mounted With Lock-In-Place Angle Adjustment

Current Draw

35mA; 38mA

Mode

Selectable Fail Safe; Fail Secure

Series

Parts/Accessories

Input Voltage

12/24VDC

Product Overview
Scan IIPassive infrared motion sensors

The Scan II™ is a compact, passive infrared detector specifically designed for "requestto- exit" applications. It features adjustable relay latch time, an externally visible activation LED, and two form "C" relays.

The high-impact ABS plastic enclosure in black or white comes apart in 3 pieces for easy mounting and lock-in-place scanner angle adjustment. Internal angle setting marks aide optimal coverage configuration for both wall and ceiling mounting. Mounting height is 7 to 15 feet allowing coverage area of the Scan II sensor of up to 8 by 10 ft (2.4 m by 3 m).

Features and benefits:
  • Adjustable relay latch time from 0.5 to 64 seconds
  • Field-selectable fail safe/fail secure
  • Included pattern masking kit snaps in place to narrow scan field and help prevent unwanted activations
  • Activation LED is visible at a distance and can be configured to OFF as needed
  • Intended for indoor use only
  • Wall or ceiling mounted with lock-in-place angle adjustment
  • UL294 and ULC-S319, Class 1 listed by manufacturer
  • High-impact ABS plastic enclosure and internal electronics can endure temperatures of -20° to 120°F
  • High-impact ABS plastic enclosure and internal electronics can endure temperatures of -20° to 120°F
Specifications: Power requirements:
  • 12/24 VDC: 35 mA @ 12 VDC; 38 mA @ 24 VDC when activated
  • 12/24 VDC: 35 mA @ 12 VDC; 38 mA @ 24 VDC when activated
  • 38 mAh required for standby operation (no internal standby battery)
Relay:
  • Two form "C" relay contacts rated 2.0 Amp @ 30 VDC or VAC maximum for DC resistive loads
Installation options:
  • Adjustable relay latch time from 0.5 to 64 seconds
  • Relay mode can be programmed to reset when timer expires or remain activated until motion stops
  • Field-selectable fail safe/fail secure
  • Mounting height of 7 to 15 feet (indoors only)
  • Lock-in-place pattern adjustment is +/- 14° with separate settings for wall vs. ceiling application
