Seco 2825855-XCP10 Turning Insert: DNMU TH1000 332-M3, Solid Carbide - pack of 10

Item #: 2825855-XCP10 by Seco

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$312.90

/package
SAVE UP TO 31.29

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55degree

Insert Material

Carbide

Series

DNMU-M3

Coating Process

PVD

Coating/Finish

TiAlSiN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

02825855

Material Grade

S05

Primary Workpiece Material

Superalloys & Titanium

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.9134

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Lead Angle

55degree

Maximum Depth of Cut (Decimal Inch)

0.4252

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

Diamond 55

Clearance Code

N

Full Radius

No

Insert Shape Code

D

Chip Breaker

M3

Insert Style

DNMU

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Back Turning

Manufacturer Grade

TH1000

Length Range (Decimal Inch)

0.7000 - 10.0000

Proprietary Coating Designation

Multilayer Coating

Iso Code

DNMU110408-M3

Product Overview

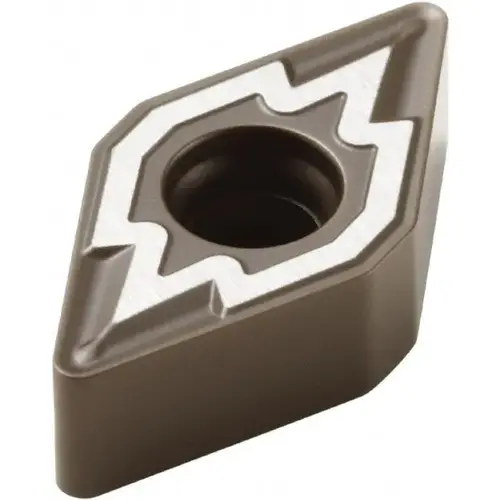

Turning Insert: DNMU TH1000 332-M3, Solid Carbide TiAlSiN Coated, 3/8" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series DNMU
